Retrofitting luggage net on trunk floor - AZ68.50-P-0002MCC

MODEL 451.3/4

except code P02 (car2go)

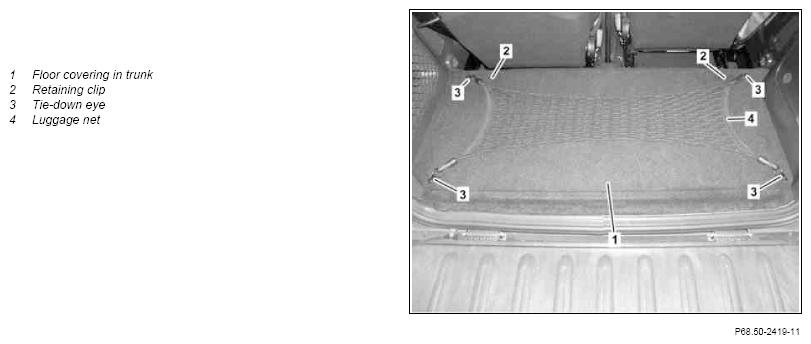

Fig 1: Identifying Floor Covering In Trunk, Retaining Clip, Tie-Down Eye And Luggage Net

Courtesy of MERCEDES-BENZ USA

	Remove
1	Move seats forward
2	Remove retaining clips (2) and fold trunk floor covering (1) toward front	Carefully fold trunk floor covering (1). Otherwise it can be damaged by breaking or tearing.
	Install
3	Drill holes in trunk floor covering (1)	In area of tie-down eye (3), according to markings at bottom of trunk floor covering (1). Hole diameter: 5 mm
		Twist drill bit set	Fig 2
4	Tighten tie-down eyes (3) on trunk floor covering (1) using bolts, nuts and shims included in package contents
5	Fold over trunk floor covering (1), align and install retaining clips (2)
6	Hook luggage net (4) into tie-down eyes (3)
7	Move seats to starting position
