Retrofit BRABUS attachment parts on rear fender - AN88.10-P-0006MCC

MODEL 451.3 (except 451.39), 451.4 (except 451.49)

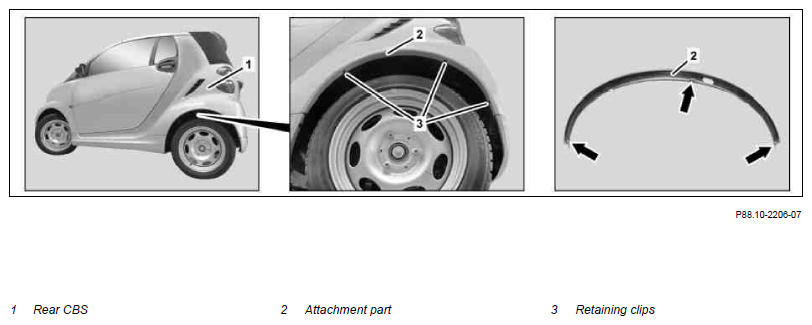

Fig 1: Identifying Rear CBS And Retaining Clips

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
1	Paint attachment parts (2)	Use only paint and paint system approved by Daimler AG.
2	Clean contact surfaces on attachment parts (2) on rear CBS (1)	Cleaner	*BR00.45-Z-1025-04A
3	Position attachment parts (2) on rear CBS (1) and clip in catch hook (arrows)
4	Install retaining clamps (3)
5	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "BRABUS rear fender retrofitted according to AN88.10-P-0006MCC " field organization texts for design group 88.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTES

Part no.	Designation	Quantity
KG 98 (siehe EPC)	Rear fender flare	1
