Retrofit luggage-retaining net in trunk side - AZ68.50-P-0003MCC
MODEL 451.3/4 except CODE (P02) car2go
| Removing | |||

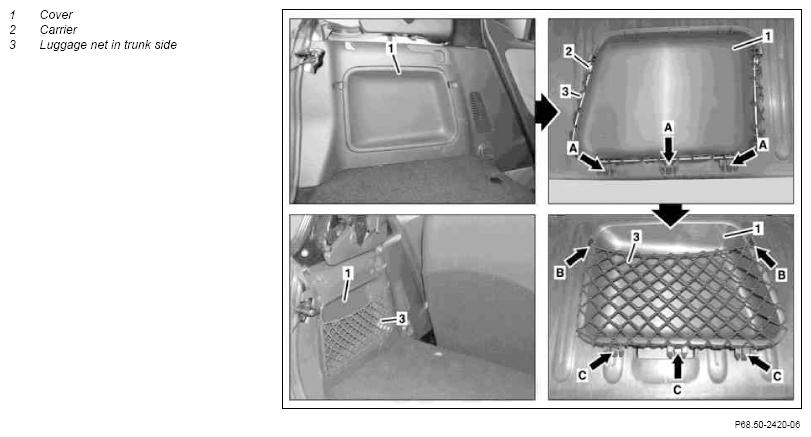

| 1 | Remove cover (1) from luggage compartment lining at side | ||
| Install | |||
| 2 | Position carrier (2) for luggage net in trunk side (3) in area of bracket (arrows A) on cover (1) | ||
| 3 | Lift carrier (2) at sides over cover (1) and position (arrows B) | ||
| 4 | Position luggage net in trunk side (3) in guided areas (arrows A, B, C) so that the cover (1) can be inserted easily into the luggage compartment lining at side | ||
| 5 | Install cover (1) in luggage compartment lining at side |
