Install divider between luggage and passenger compartment - AZ68.50-P-0005MCO

MODEL 451.4

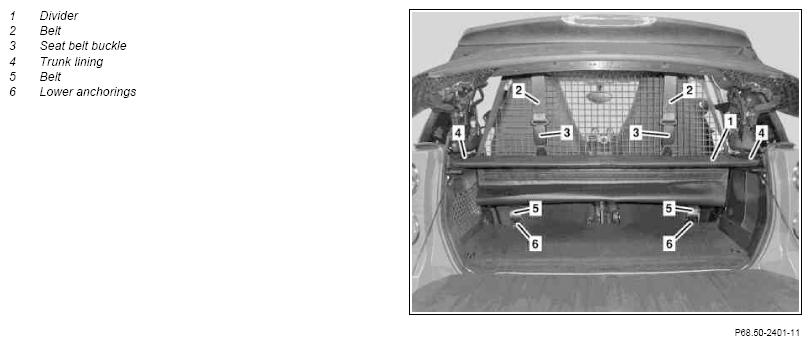

Fig 1: Identifying Divider, Belt, Seat Belt Buckle, Trunk Lining And Lower Anchorings

Courtesy of MERCEDES-BENZ USA

	Install
1	Install lower anchorings (6) for divider (1) on vehicle floor		AZ68.50-P-0005-01MCC
			*BA68.50-P-1003-03D
2	Position left and right belt (2) over roll bar and arrest in corresponding seat belt buckle (3)
3	Hook divider (1) into lower anchorings (6) and tension belts (5).
4	Insert divider (1) on left and right luggage compartment lining (4).
5	Add special equipment to the vehicle data card and to the online vehicle data card	Enter code (I05) Divider between luggage and passenger compartment.

CARGO RETAINER, DIVIDER

Number	Designation		Model 451.4
BA68.50-P-1003-03D	Bolt for divider mount on vehicle floor	Nm	22
