General information on body connection techniques - AH60.00-P-0015-01SX

Model 216, 221

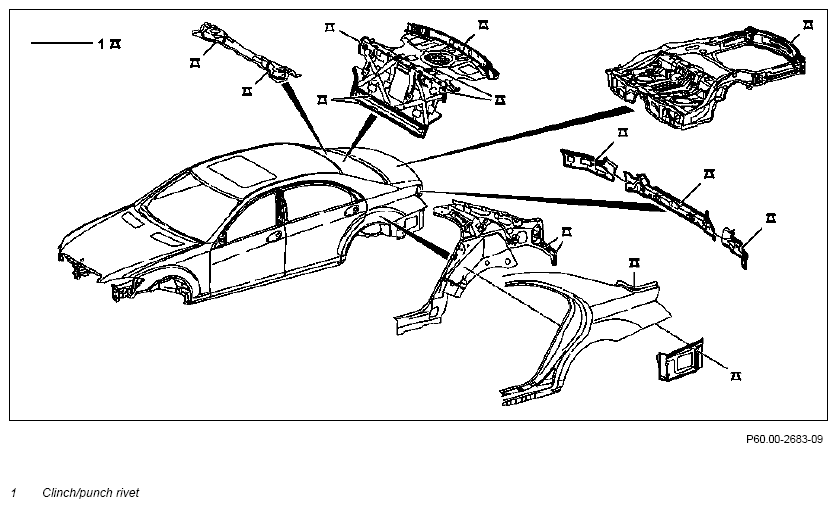

Fig 1: Identifying Body Components Rivet Punch Areas (Illustrated On Model 221)
G10035836Courtesy of MERCEDES-BENZ USA

Illustrated on model 221

IMPORTANT Illustration shows standard clinch/punch rivet

When performing repair work use only specified blind rivet.
