Check and correct the adjustment of the headlamps - AP82.10-P-8260MCC

MODEL 451.3/4

Shown on model 451 with code V07 (Front fog lamps (FFO))

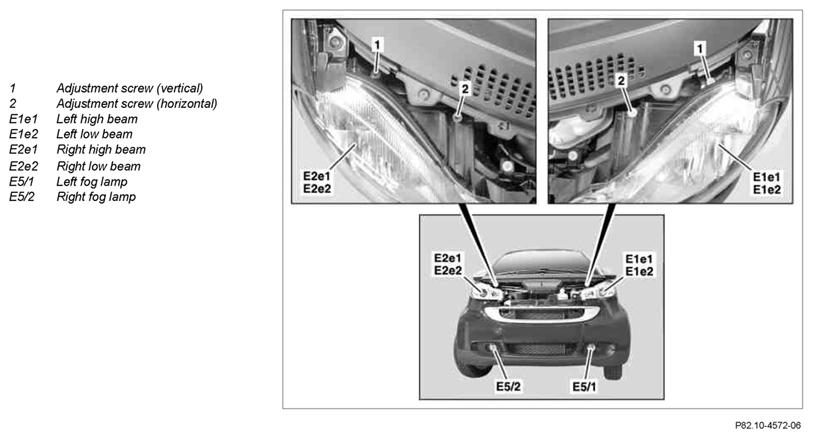

Fig 1: Checking Correct Adjustment Of Headlamps - Shown On Model 451 With Code V07

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with code X92 (BRABUS double additional headlamps)

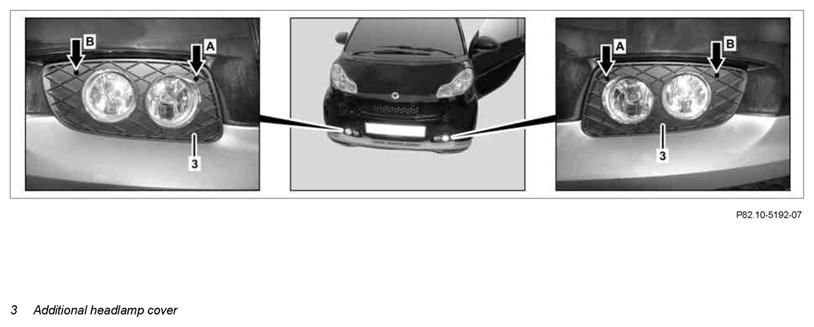

Fig 2: Checking Correct Adjustment Of Headlamps - Shown On Vehicle With Code X92

Courtesy of MERCEDES-BENZ USA

	Preparatory activity
1	Drive vehicle onto level surface.	The vehicle must be in the ready-to-drive condition (curb weight, fuel tank full or corresponding additional weight). Front wheels in straight-ahead position.
2	Correct tire inflation pressure		AP40.15-P-4061MCC
3	Place 75 kg or one person on driver seat and set headlamp range adjustment to "0"
4	Remove maintenance flap
5	Align headlamp aimer with the vehicle and perform height adjustment towards the center of the headlamps	Follow operating instructions of the headlamp aimer.
6	Switch on left high beam (E1e1) and right high beam (E2e1)
	Check
7	Check setting of high beam		AP82.10-P-8260-02MCC
8	Switch on left low beam (E1e2) and right low beam (E2e2)
9	Check setting of left low beam (E1e2) and right low beam (E2e2)		AP82.10-P-8260-05MCC
11	Check/adjust front fog lamps	MODEL 451.3/4 with CODE V07 (Front fog lamps (FFO)) MODEL 451.3/4 with CODE X92 (BRABUS auxiliary twin headlamps)	AP82.10-P-8260-04MCC
12	Check adjustment of daytime running lights	MODEL 451.3/4 with CODE X92 (BRABUS auxiliary twin headlamps)	AP82.10-P-8260-08MCC
	Finishing activity
13	Return vehicle to original condition
