Remove/install footrest on passenger side - AR68.30-P-1340MCC

MODEL 451.3##/4## 1# with CODE (LHD) Left-hand drive vehicle

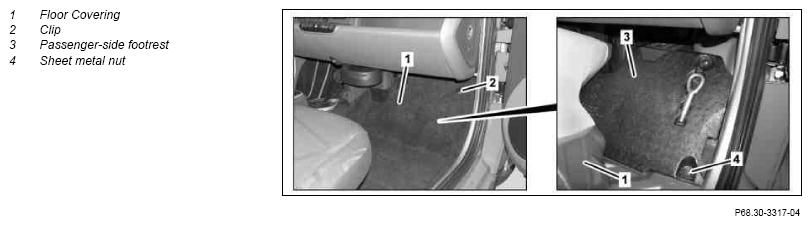

Fig 1: Identifying Footrest On Passenger Side Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move right seat toward rear
2	Remove clip (2)
3	Fold down floor covering (1) in area of passenger's side footwell	Do not break or tear floor covering (1) when folding down.
4	Remove sheet metal nut (4).
5	Remove passenger-side footrest (3)
6	Install in the reverse order
