Notes on distinguishing characteristics of wiring harnesses - AH54.18-P-0700-01A
MODEL 168
From the cable outlets on the control unit box (F23/1) on the vehicle, one can detect whether a one-piece or a two-piece wiring harness is used.
If the cable outlets (1 and 2) on the vehicle are used, it is a two-piece wiring harness.
If the cable outlets (1 and 2) on the vehicle not used, it is a one-piece wiring harness.

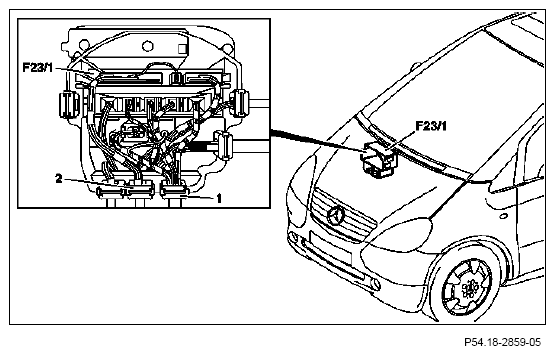

Shown on vehicle with two-piece wiring harness
