Retrofit radio - AZ82.60-P-0003MCC
MODEL 451.3/4 up to 30.8.10
with CODE (C08) Radio preinstallation incl. rod antenna (FFO)
except CODE (P02) car2go
| Remove | |||
| 1 | Remove center stowage compartment. | AR68.10-P-1620MCC | |
| Install | |||

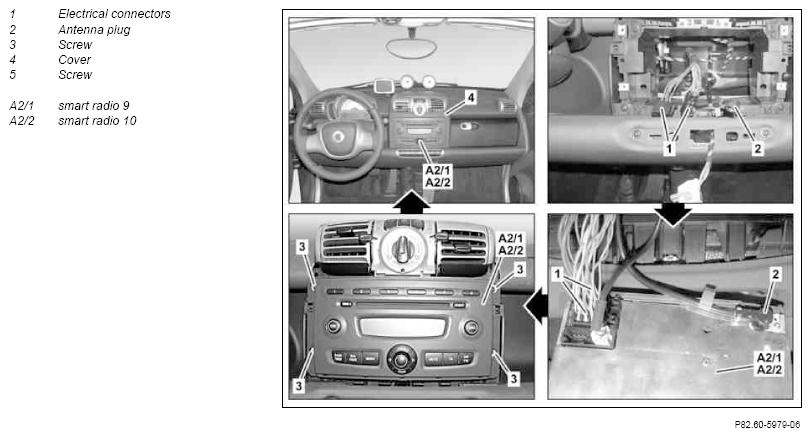

| 2 | Connect electrical connectors (1) and antenna plug (2) to smart radio 9 (A2/1) or smart radio 10 (A2/2) | ||
| 3 | Insert smart radio 9 (A2/1) or smart radio 10 (A2/2) into radio recess | ||
| 4 | Tighten bolts (5) of smart radio 9 (A2/1) or smart radio 10 (A2/2) | Cordless drill/driver |
|
| 5 | Fit cover (4) onto center console | AR68.20-P-2350MCC | |
| 6 | Perform function test of smart radio 9 (A2/1) or smart radio 10 (A2/2) | ||
| 7 | Add special equipment to the vehicle data card and to the online vehicle data card |
