Check track rod and drag link linkage for play, check boots-rubber - AP46.00-P-4653MCC
MODEL 451.3/4
| Remove | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle using the vehicle lift and remove underfloor paneling | ||
| Check | |||

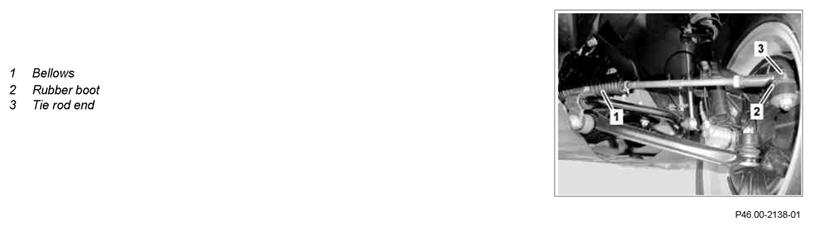

| 2 | Stretch boot (1) by turning the steering onto left and right lock while checking for damage | ||
| Remove/install bellows | AR46.40-P-9998MCC | ||
This can cause damage to the plastic and, in the long term, can lead to leakage. If necessary: ↓ Install a new boot (1), subject to separate repair order. |
|||
| 3 | Check ball joint of the left and right tie rod end (3) for play by firmly pulling and pushing Remove/install tie rod ball joint | ||
| AR46.40-P-0210MCC | |||
| If necessary: ↓ Install a new tie rod end (3), subject to separate repair order. |
|||
| 4 | Check left and right rubber boot (2) on tie rod end (3) for leaks and condition | ||
| Remove/install tie rod ball joint | AR46.40-P-0210MCC | ||
| If necessary: ↓ Install a new tie rod end (3), subject to separate repair order. |
|||
| Install | |||
| 5 | Install underfloor panelings and lower the vehicle with the vehicle lift |
