Lower and position rear drive module - AR01.00-P-3050MCU

ENGINES 132.910 in MODEL 451.3/4

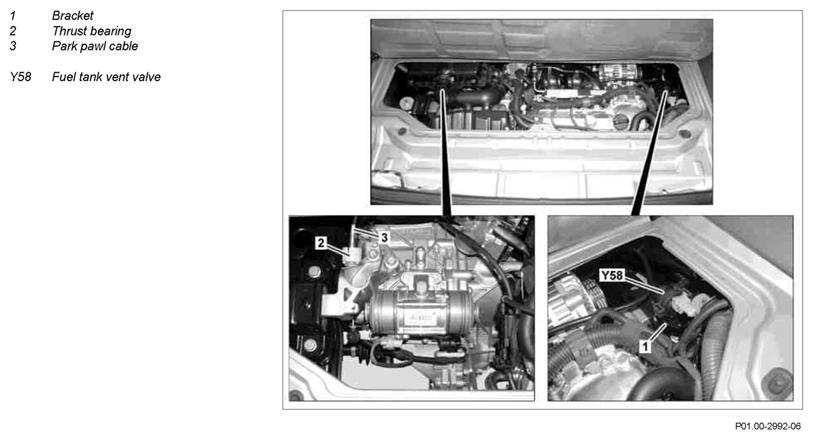

Fig 1: Identifying Bracket, Thrust Bearing, Park Pawl Cable And Fuel Tank Vent Valve

Courtesy of MERCEDES-BENZ USA

Shown on vehicles up to production date 2.6.08 with code (I01) Plus air conditioning

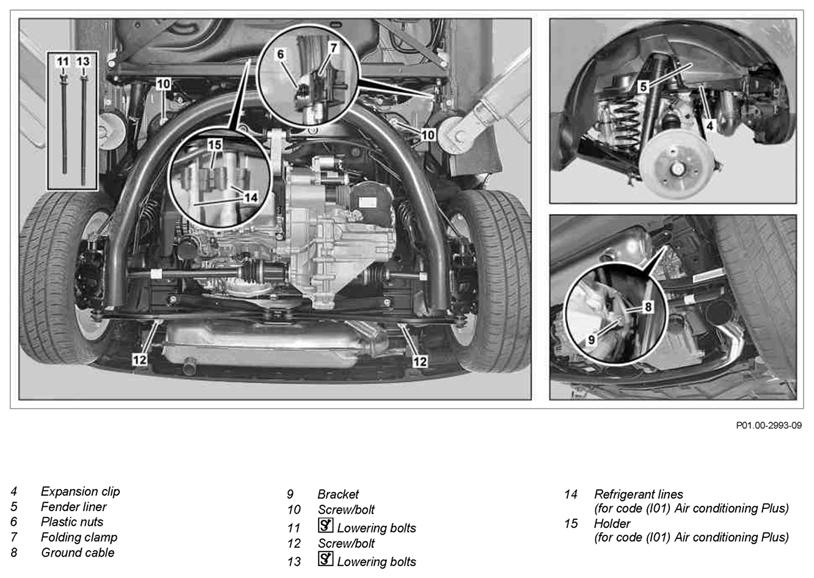

Fig 2: Positioning Rear Drive Module - Shown On Vehicles Up To Production Date 2.6.08 With Code (I01)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

28.3.08

Repair method revised

Operation steps 8, 9, 11 and 13

	Remove/install
1	Remove interior flap above engine		AR88.40-P-1100-03MCC
2	Unhook tank vent valve (Y58) on holder (1)
3	Remove air filter housing		AR09.10-P-1150MCU
4	Unhook thrust bearing (2) for park pawl cable (3) on transmission
5	Remove rear wheels		AR40.10-P-1100MCU
6	Remove expansion clip (4) on fender liner (5) of left and right rear fender
7	Remove rear underbody paneling	Cordless drill/driver
8	Detach diagonal struts	For model 451.4 with code (I01) Air Conditioning Plus	AR61.10-P-5138-02MCU
			*BA61.25-P-1002-01B
9	Remove bracket for diagonal struts	For model 451.4 with code (I01) Air Conditioning Plus	AR61.10-P-5138-01MCC
			*BA61.25-P-1003-01B
10	Remove bulkhead wall	In model 451.4	AR61.25-P-6600MCU
11	Lower fuel tank	On vehicles with code (I01) Air conditioning Plus	AR47.10-P-4100-03MCU
		Note routing of refrigerant lines (14). There must have a minimum distance of about 5 mm to the body, fuel tank or other components, otherwise noises or damage may be caused by impacts or chafing.	*BA47.10-P-1001-01F
		Transmission jack	Fig 4
12	Unscrew plastic nut (6) and remove folding clamp (7) from screw bolt
13	Unclip refrigerant lines (14) from bracket (15) and remove bracket (15)	For vehicles with code (I01) Air Conditioning Plus, for which the holder (15) is still installed. : The bracket (15) may no longer be installed.
14	Unhook ground line (8) from holder (9)
15	Remove rear apron		AR88.30-P-0502MCC
	Lower, position
16	Position major assembly lifting table with universal main assembly mount and fix in place with the mount on the engine		AR01.10-P-2400-06MCU
		Major assembly lifting platform/scissors-Model pallet forklift	Fig 5
17	Replace screw/bolts (10) by lowering bolts (11) and screw/bolts (12) by lowering bolts (13)	Observe installation location of bolts (10, 12). Screw in bolts (10, 12) all the way and then tighten.	*BA35.10-P-1001-01F
			Fig 3
18	Lower rear-wheel drive module carefully	When lowering, check for unobstructed movement of electrical lines and hoses in order to avoid causing any damage. For vehicles with code (I01) Air Conditioning Plus, ensure that refrigerant lines (14) are not bent since these must be replaced otherwise. For vehicles with code (I01) Air Conditioning Plus, ensure that the refrigerant lines (14) have unobstructed movement relative to each other and are not damaged due to impacts, chafing, bending or crushing. Ensure that torque strut is correctly introduced into the sleeve.
19	Remove mount on engine and main assembly lifting table with universal main assembly mount		AR01.10-P-2400-06MCU
			Fig 5
20	Install in the reverse order
