Remove/install electric motor - AR08.10-P-0010MEX

ENGINE 780.993 in MODEL 451.390/392/490/492

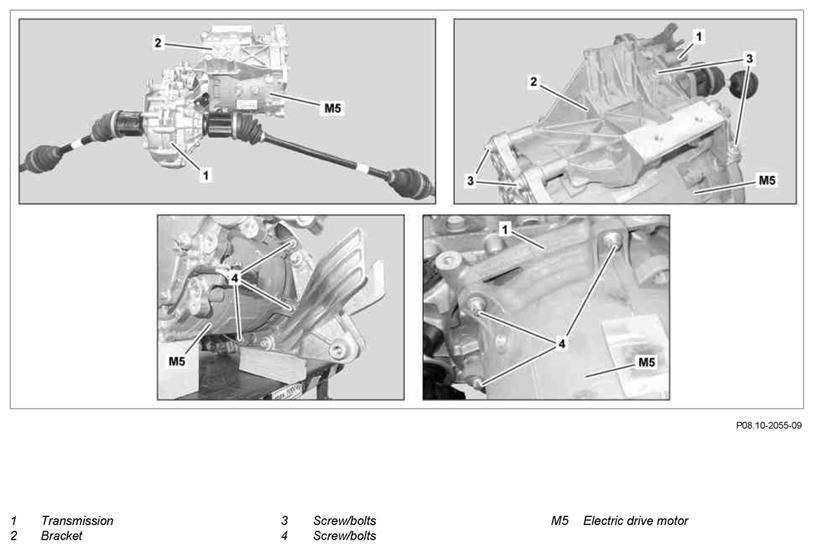

Fig 1: Identifying Electric Motor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Note on the voltage on-board electrical system		AH54.00-P-0010-01A
	Evaluation of high-voltage components		AH54.00-P-6500-01SXH
	Remove/install
1	Remove electric motor drive (M5) with transmission (1)		AR08.10-P-0005MEX
2	Undo screw/bolts (3) and remove bracket (2)	Bolts, bracket for power electronics to electric motor (4 pcs)	*BA08.10-P-1001-01D
3	Unscrew screws/bolts (4) and remove transmission (1) from electric drive motor (M5)	Aid of helper required. Bolt, transmission to engine	*BA26.00-P-1002-01E
4	Install in the reverse order

ELECTRIC MOTOR

Number	Designation		ENGINE 780.993 in MODEL 451.390/392/490/49 2
BA08.10-P-1001-01D	Bolts, bracket for power electronics to electric motor (4 pcs)	Nm	23

MANUAL TRANSMISSION COMPLETE

Number	Designation		ENGINE 780.993
BA26.00-P-1002-01E	Bolt, transmission to engine	Nm	23
