Remove/install vacuum pump - AR43.05-P-1320MEV
MODEL 451.391/491 with ENGINE 780.009
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. |
AS54.00-Z-0001-01A | |
| Note on the voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove vehicle key and mains plug | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 2 | Raise vehicle with vehicle lift | ||

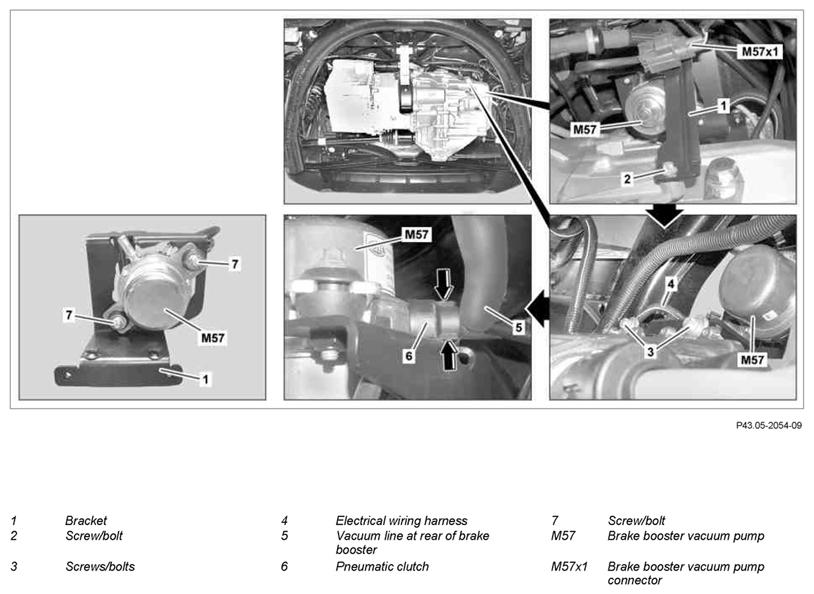

| 3 | Unclip connector of brake booster vacuum pump (M57x1) at bracket (1) and disconnect | ||
| 4 | Unscrew screw/bolt (2) | ||
| 5 | Remove screws/bolts (3) | ||
| 6 | Expose electrical wiring harness (4) at bracket (1) | ||
| 7 | Guide brake booster vacuum pump (M57) with bracket (1) out until the pneumatic clutch (6) of brake booster vacuum line at rear (5) is accessible. | ||
| 8 | Operate both catch hooks of pneumatic clutch (6) simultaneously in the arrow direction and detach brake booster vacuum line at rear (5) at brake booster vacuum pump (M57) | Check brake booster vacuum line at rear (5) for damage and replace if necessary. ↓ Remove/install brake booster vacuum line |
AR43.10-P-0355MEV |
| 9 | Remove brake booster vacuum pump (M57) with bracket (1) | ||
| 10 | Remove screws/bolts (7) and remove brake booster vacuum pump (M57) from bracket (1) | *BA43.05-P-1002-01E | |
| 11 | Install in the reverse order | ||
| 12 | Carry out brake test on the test stand | ||
| AP42.00-P-4290MCC |
VACUUM PUMP
| Number | Designation | Model 451.390/391/392/49 0/491/492 | |
|---|---|---|---|
| BA43.05-P-1002-01E | Bolt, vacuum pump to bracket | Nm | 11 |
