Remove/install side paneling in trunk - AR68.30-P-4800MEV

MODEL 451.390/392/490/492 with ENGINE 780.993

MODEL 451.391/491 with ENGINE 780.009

Shown on right side on model 451.3

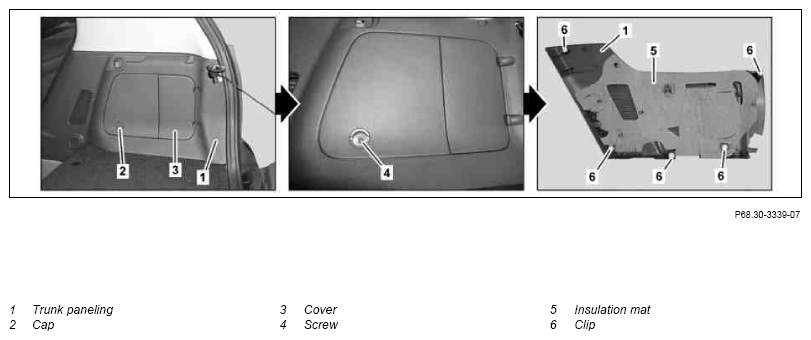

Fig 1: Identifying Side Paneling In Trunk Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust left and right seat toward front
2	Unclip cover (3) on left trunk paneling (1) and remove	When removing left trunk paneling (1).
3	Unclip cap (2) below right trunk paneling (1) and remove	When removing right trunk paneling (1).
4	Unscrew bolt (4) from trunk paneling (1)
5	Unclip trunk paneling (1) and remove	Check clips (6) on trunk paneling (1), replace if necessary. Position edge guard on lower rear-end door in area of trunk paneling (1) with suitable tool.
6	Remove insulating mat (5)	When replacing trunk paneling (1).
7	Install in the reverse order
