Remove/install center air nozzle - AR68.10-P-1150MCU

MODEL 451.3/4 up to 30.8.10 except CODE (P02) car2go

MODEL 451.3 with CODE (P02) car2go

with instrument panel up to production date 30.8.10

Shown on vehicle with code (I01) Air conditioning Plus without code (P02) car2go

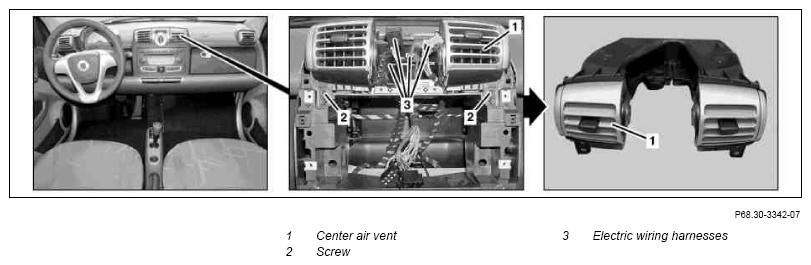

Fig 1: Identifying Center Air Nozzle Remove/Install Components - Shown On Vehicle With Code (I01) Without Code (P02)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove air conditioning push-button control unit	On vehicles with code (I01) Air conditioning Plus	AR83.25-P-1124MCC
1.2	Remove heater/ventilation operating unit	On vehicles without code (I01) Air conditioning Plus	AR83.20-P-1850MCC
2	Detach global positioning system antenna (GPS) from center air vent (1) with assembly wedge and lay down to side	On vehicles with code (P02) car2go Replace double-sided adhesive tape.
		Assembly wedge	Fig 2
3	Remove bolts (2)
4	Expose electric wiring harnesses (3) in area of center air vent (1) and remove center air vent (1)	Observe installation position of electric wiring harnesses (3).
5	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
