Remove/install company sign - AR88.00-P-1014MCE

MODEL 451.3/4

Rear

Shown on vehicle as of 20.3.12

Dimensions

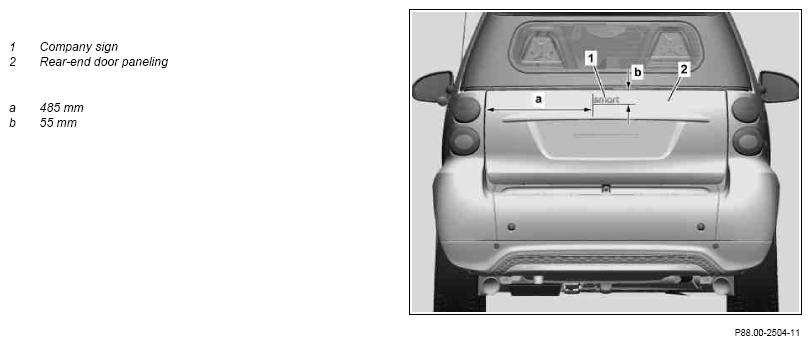

Fig 1: Identifying Company Sign Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Detach company sign (1) and remove	Carefully position clip remover on company sign (1). Otherwise the rear-end door paneling (2) can be scratched.
		Clip remover	Figure
	Install
2	Clean rear-end door paneling (2) in area of company sign (1).	The rear-end door paneling (2) must be free of dust and grease in the area of the company sign (1). Paint adhesion problems can occur from soiled bonding surfaces when gluing on company sign (1).
3	Mark installation position of company sign (1) with adhesive tape according to dimensions (a, b)	Measure dimension (b) on upper edge of rear-end door paneling (2).
4	Remove rear protective foil from company sign (1)	Ensure that individual parts of company sign (1) are not loosened from front carrier foil
5	Align company sign (1) according to markings and press onto rear-end door paneling (2).
6	Press on company sign (1) and remove front carrier foil as well as adhesive tape.

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
