Remove/install electric vehicle sound generator - AR08.00-P-1000MEX
MODEL 451.390/392/490/492
with CODE B53 (Pedestrian sound)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

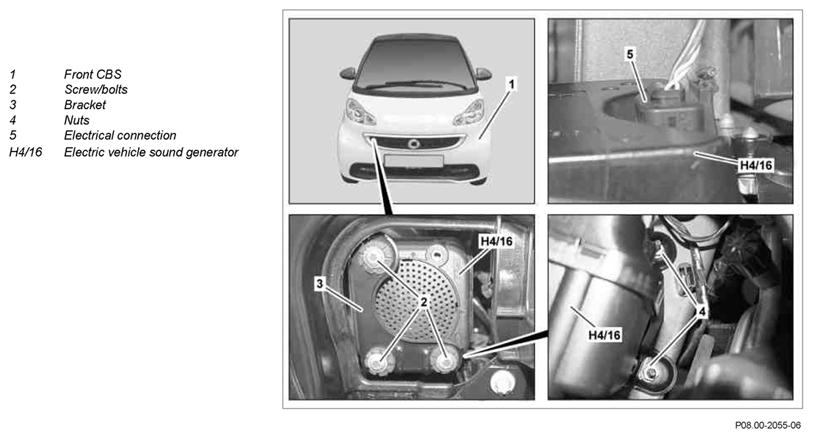

| 1 | Remove CBS front end (1) | AR88.00-P-1010MCC | |
| 2 | Remove screw/bolts (2) | ||
| 3 | Place the electric vehicle sound generator (H4/16) to one side until the nuts (4) are accessible | ||
| 4 | Unscrew nuts (4) and remove bracket (3) to the front | ||
| 5 | Release and disconnect electrical connection (5) | ||
| 6 | Remove electric vehicle sound generator (H4/16) | ||
| 7 | Install in the reverse order |
