Remove/install company sign - AR88.00-P-1014MCC

MODEL 451.3/4 front

Vehicles up to 19.3.12

Dimensions

Fig 1: Identifying Company Sign Remove/Install Components - Vehicles Up To 19.3.12

Courtesy of MERCEDES-BENZ USA

Vehicles as of 20.3.12

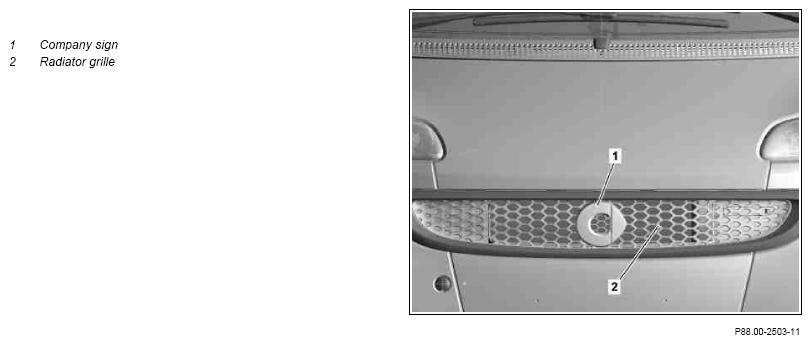

Fig 2: Identifying Company Sign Remove/Install Components - Vehicles As Of 20.3.12

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove Detach company sign (1) and remove	Carefully position clip remover on company sign (1). Otherwise the maintenance flap or the radiator grille (2) can be damaged.
		Clip remover	Fig 3
	Install
2	Clean maintenance flap or radiator grille (2) in bonding area of company sign (1)	The bonding area must be free of dust and grease. Paint adhesion problems can occur from soiled bonding surfaces when gluing on company sign (1).
3	Mark installation position of company sign (1) on maintenance flap with adhesive tape according to dimensions (a, b)	Vehicles up to 19.3.12
4	Remove rear protective foil from company sign (1)	On vehicles up to 19.3.12 ensure that separate parts of company sign (1) are not loosened from the front carrier foil
5.1	Align company sign (1) according to marks and press onto maintenance flap.	Vehicles up to 19.3.12 Then remove front carrier foil and adhesive tape.
5.2	Align company sign (1) according to predefined position and press onto radiator grille (2)	Vehicles as of 20.3.12

Fig 3: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
