Partially replace crossmember below front seat - AR63.40-P-1189MCC
MODEL 451.3/4
Illustrated on model 451.4
MODIFICATION NOTES
| 30.1.09 | Information on alternative repair methods are worked in (riveting or plug welding as alternative and structural bonding) |
| Removing | |||
| Risk of death caused by high voltage used for electric welding. Risk of explosion caused by welding in the area of highly inflammable materials. Risk of injury caused by welding spatter and UV light while welding. Risk of poisoning caused by inhaling welding fumes. | Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor system. | AS00.00-Z-0007-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-P-0005-01FF | ||
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01SM | ||
| Pretreatment of bonding surfaces | AH60.00-P-0008-01MCC | ||
| General information on riveting | AH60.00-P-0003-01MCC | ||
| Notes on replacing body parts | AH60.00-P-0027-01FF | ||
| General information on repairs to body | AH60.00-P-0001-01FF | ||
| Generally conventional tools are required for body work, additional tools required are listed above. | Pneumatic/hydraulic blind rivet tool |
||
| The repair method using riveting described here can be replaced |
|||
| 1 | Remove detachable parts in the repair area | ||
| 2 | Cover all detachable parts remaining in vehicle (area to be repaired) | ||
| 3 | Partially remove side wall paneling | On model 451.3 | AR63.10-P-0115MCC |
| On model 451.4 | AR63.10-P-0115MCO | ||
| 4 | Partially remove side wall reinforcement | AR63.20-P-0862MCC | |
| 5 | Remove rear lamp insert | On model 451.3 | AR64.20-P-1061MCC |
| On model 451.4 | AR64.20-P-1061MCO | ||
| 6 | Remove B-pillar reinforcement | On model 451.3 | AR63.20-P-1351MCC |
| On model 451.4 | AR63.20-P-1351MCO | ||
| 7 | Remove rear wheel well | AR63.10-P-0661MCC | |
| 8 | Remove B-pillar inner section | AR63.20-P-1355MCC | |
| 9 | Partially remove outer longitudinal member inner shell on entrance | According to damage profile | AR63.30-P-1143MCC |

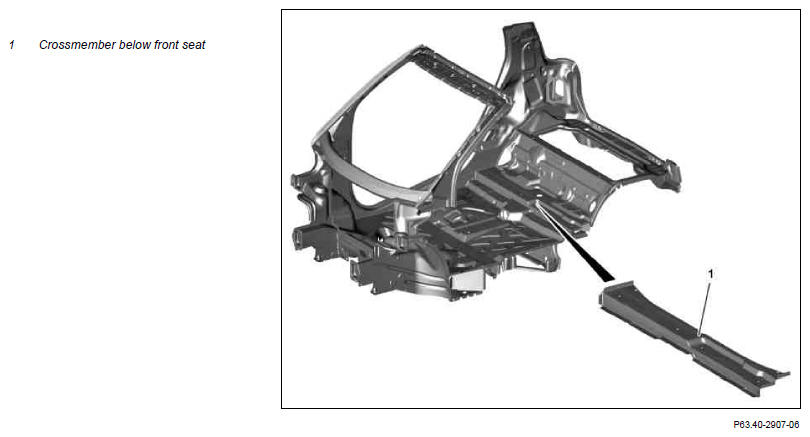

| 10 | Partially remove crossmember below front seat (1) | AR63.40-P-1189-01MCC | |
| 11 | Prepare connecting points for crossmember below front seat (1) on body | AR63.40-P-1189-04MCC | |
| 12 | Partially prepare crossmember below front seat (1) for installation | AR63.40-P-1189-02MCC | |
| Install | |||
| 13 | Install section of crossmember below front seat (1) | AR63.40-P-1189-03MCC | |
| Rivet | *BR00.45-Z-1001-13A | ||
| Adhesive | *BR00.45-Z-1092-02A | ||
| 14 | Partially install longitudinal member inner shell on entrance | According to damage profile | AR63.30-P-1143MCC |
| 15 | Install B-pillar inner section | AR63.20-P-1355MCC | |
| 16 | Install rear wheel well | AR63.10-P-0661MCC | |
| 17 | Install B-pillar reinforcement | On model 451.3 | AR63.20-P-1351MCC |
| On model 451.4 | AR63.20-P-1351MCO | ||
| 18 | Install rear lamp insert | On model 451.3 | AR64.20-P-1061MCC |
| On model 451.4 | AR64.20-P-1061MCO | ||
| 19 | Install side wall reinforcement | AR63.20-P-0862MCC | |
| 20 | Install side wall paneling | On model 451.3 | AR63.10-P-0115MCC |
| On model 451.4 | AR63.10-P-0115MCO | ||
| 21 | Clean welds and sheet metal flange with wire brush and clean areas to be repaired | ||
| 22 | Prime area to be repaired using primer filler | ||
| 23 | Supply standard seam seals with body sealant | AR97.10-P-4000MCC | |
| Sealant | *BR00.45-Z-1003-01A | ||
| 24 | Supplement standard underbody protection with permanent underbody sealant | Underfloor protection | *BR00.45-Z-1001-05A |
| 25 | Paint area repaired and adjacent surfaces | ||
| Notes on paintwork repairs | AH98.00-P-9408-02MCC | ||
| 26 | Apply additional cavity preservation | AR97.20-P-1500FF | |
| Teroson protective wax | *BR00.45-Z-1008-05A | ||
| 27 | Reinstall all detachable parts removed |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | Sealant, white, 310 ml, DB supply specification 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1092-02A | Adhesive kit, body, 2-component adhesive | A 009 989 36 71 |
| BR00.45-Z-1001-05A | Underfloor protection 800 ml | A 001 986 46 10 |
| BR00.45-Z-1008-05A | Teroson protective wax | Henkel Loctite |
| Art. no.: 122.73Q | ||
| BR00.45-Z-1001-13A | Blind rivet 6.4x14 | A 003 990 35 97 |
