Retrofit Brabus front spoiler - AN88.20-P-0003MCF

MODEL 451.3 (except 451.333), 451.4 (except 451.433)

as of model year 2013

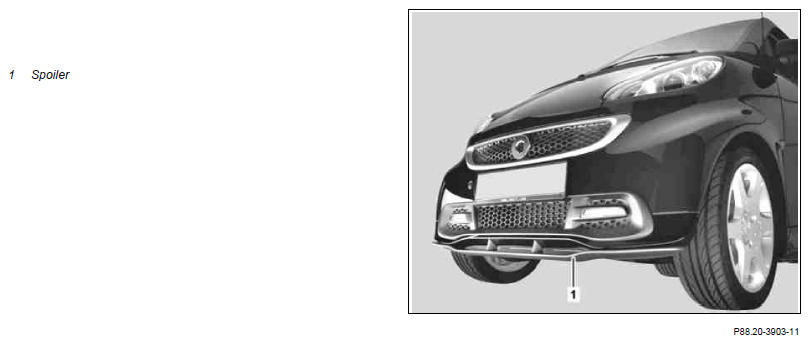

Fig 1: Identifying Spoiler

G10977902

Courtesy of MERCEDES-BENZ USA

	Install
	Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors.	No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and skin cream. Ensure that the area is well ventilated.	AS98.00-Z-0002-01A
1	Paint spoiler (1)	Coordinate with customer whether the spoiler (1) is to be painted. Should this not be the case, do not perform this operation step.
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
2	Lift vehicle on vehicle lift
3	Install spoiler (1)		AN88.20-P-0003-01MCF
3	Install spoiler (1)	Cleaner	*BR00.45-Z-1025-04A
4	Lower vehicle with lifting platform

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
