Notes on processing glue for metal bushings in fiber composites - AH60.00-P-0030-01SLR

MODEL 199

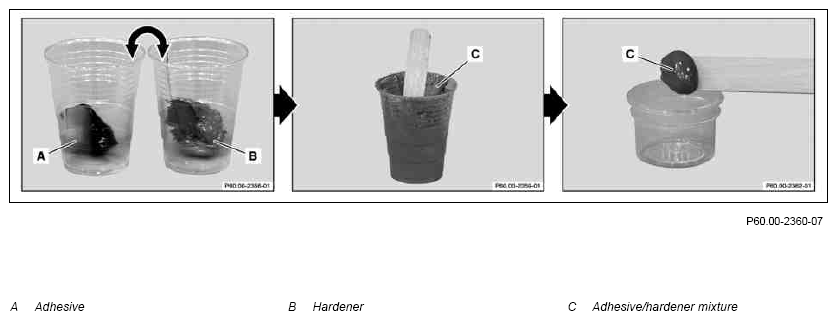

Fig 1: Identifying Adhesive/Hardener Mixture

Courtesy of MERCEDES-BENZ USA

Processing instructions

• When working with adhesive (A) and hardener (B), always wear protective gloves and eye protection.
• Always observe manufacturer's specifications regarding storage, mixing and processing.
• The adhesive/hardener mixture (C) has a limited processing time. It is therefore absolutely necessary to complete all preparations for gluing before starting to mix the adhesive (A) and hardener (B).
• Always ensure that the supply container for adhesive (A) and hardener (B) are not inadvertently mixed up with the other component with tools or by mixing up lids.
• Always work with adhesive (A) and hardener (B) in well ventilated rooms; use suction or ventilation facilities if required.

For model 199, a specimen of the

Adhesive/hardener mixture (C) must be preserved for recording the repair procedure.
