Replace wiper blade - AR82.30-P-6251MCC

MODEL 451.3/4

Shown on front wiper blades (2) on model 451.3

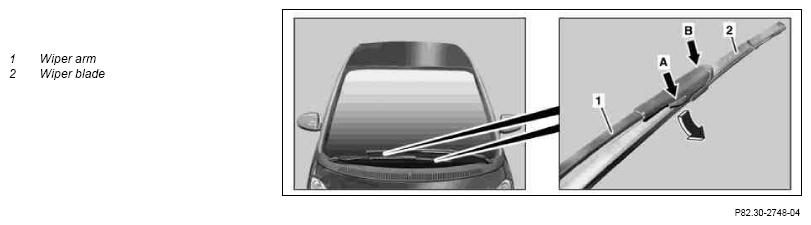

Fig 1: Identifying Wiper Arm & Blade

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Fold up wiper arm (1), unclip catch (arrow A) from wiper blade (2), move wiper blade (2) in direction of arrow, unhook from guide (arrow B) and remove	Do not allow wiper arm (1) to fold back, otherwise the window may be damaged.
2	Install in the reverse order
