Remove/install trim on center piece in front of windshield - AR88.00-P-2792MCC
MODEL 451.3/4
| Remove/install | |||
| 1 | Remove maintenance flap | ||
| 2 | Remove antenna rod | ||
| 3 | Open left and right door, press edge guard (5) to side in area of left and right fender covering (3) on both sides and remove expansion clip (4). | ||
| 4 | Slightly slide left and right fender covering (3) upward and remove. | ||
| 5 | Unscrew bolts (6, 7) | ||
| 6 | Unscrew bolt (11) in area of left front lamp unit and right front lamp unit. | ||
| 7 | Unscrew bolts (10) from paneling (1) | ||

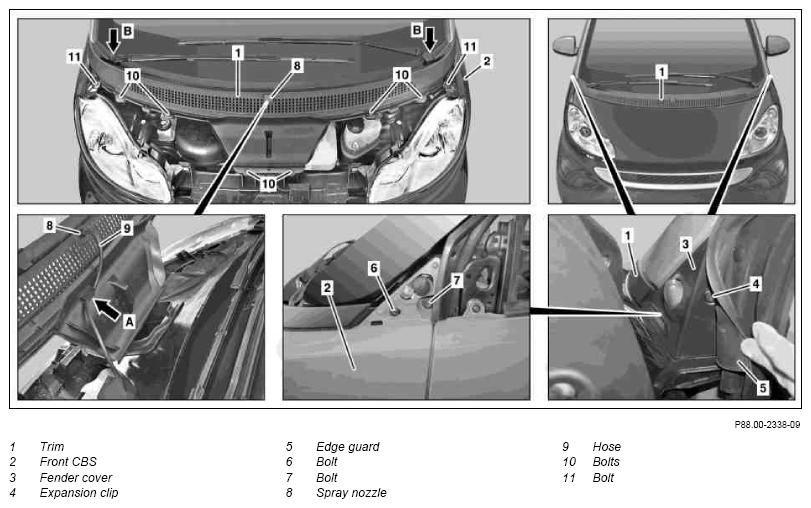

| 8 | Carefully remove trim (1) toward front and covering (arrow B) simultaneously toward rear until hose (9) on spray nozzle (8) is accessible. | ||
| 9 | Remove hose (9) from spray nozzle (8) and lay trim (1) down to side. | ||
| 10 | Loosen spray nozzle (8) from trim (1) from rear with suitable pliers and remove. | When replacing trim (1). | |
| 11 | Install in the reverse order | ||
| 12 | Adjust spray nozzle (8) on windshield washer system. | AR82.35-P-6975MCC |
