Remove/install smart radio - AR82.60-P-7004MCD
MODEL 451.3/4
with CODE 527 (High-Line radio)
except CODE 516 (RADIO WITH USB INTERFACE)
except CODE C50 (smart radio ten)
except CODE C57 (smart radio nine)
except CODE P02 (car2go)
| Remove/install | |||
| 1 | Have radio code ready for subsequent commissioning | ||
| Service Information: Safety code as theft protection | SI82.60-P-0001A | ||
| 2 | Remove cover on center console | AR68.20-P-2350MCF | |

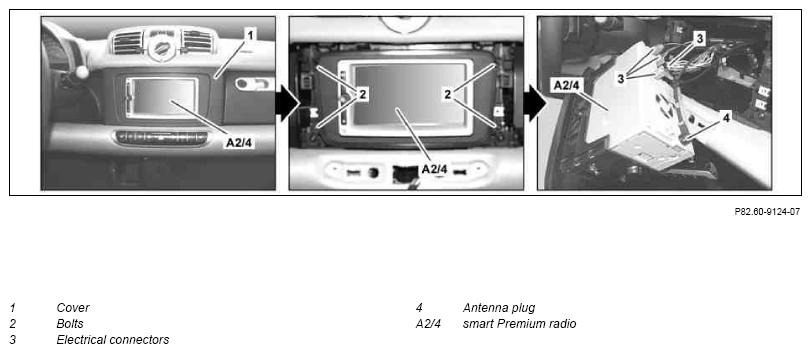

| 3 | Remove screws/bolts (2) from Premium smart radio (A2/4) | ||
| 4 | Pull Premium smart radio (A2/4) far enough out of radio recess until electrical connectors (3) and antenna plug (4) are accessible | ||
| 5 | Disconnect electrical connectors (3) and antenna plug (4) from Premium smart radio 4 (A2) | ||
| 6 | Remove Premium smart radio (A2/4) | ||
| 7 | Install in the reverse order | ||
| 8 | Connect STAR DIAGNOSIS and read out fault memory | ||
| AD00.00-P-2000-04MCC | |||
| 9 | Enter radio code | ||
| 10 | Adapt audio settings | ||
| Notes on audio settings | AH82.60-P-0002-01MCC | ||
| 11 | Perform function test of Premium smart radio (A2/4) | ||
| 12 | Check software release and update if necessary | ||
| Service Information: Update audio equipment software | SI82.85-P-0003A | ||
| Perform software update for audio units | AR82.00-P-0500MCC | ||
| 13 | Enter serial number of Premium smart radio (A2/4) into vehicle documentation (VeDoc) | When replacing Premium smart radio (A2/4). |
