Remove/install transponder coil - AR80.35-P-4515MCU

MODEL 451.3 /4

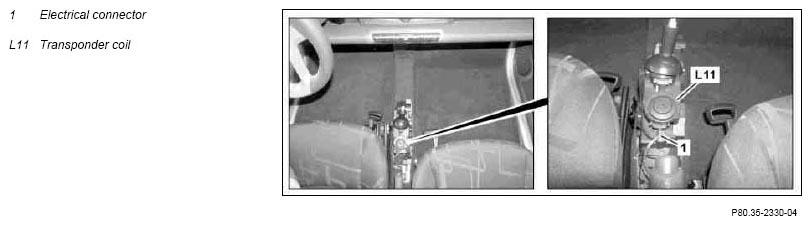

Fig 1: Identifying Transponder Coil And Electrical Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove center console	AR68.20-P-2000MCU
2	Disconnect electrical connector (1) from transponder coil (L11)
3	Unclip transponder coil (L11) and remove upward
4	Install in the reverse order
