Overview of wiring diagrams for steering - PE46.00-P-1100MCU
MODEL 451
| PE46.10-P-2102MCU | Steering wheel wiring diagram | MODEL 451 | PE46.10-P-2102MCU |
| PE46.35-P-2000MCU | Wiring diagram of electric steering | MODEL 451 | PE46.35-P-2000MCU |
Document number: pe46.10-p-2102-97mcu

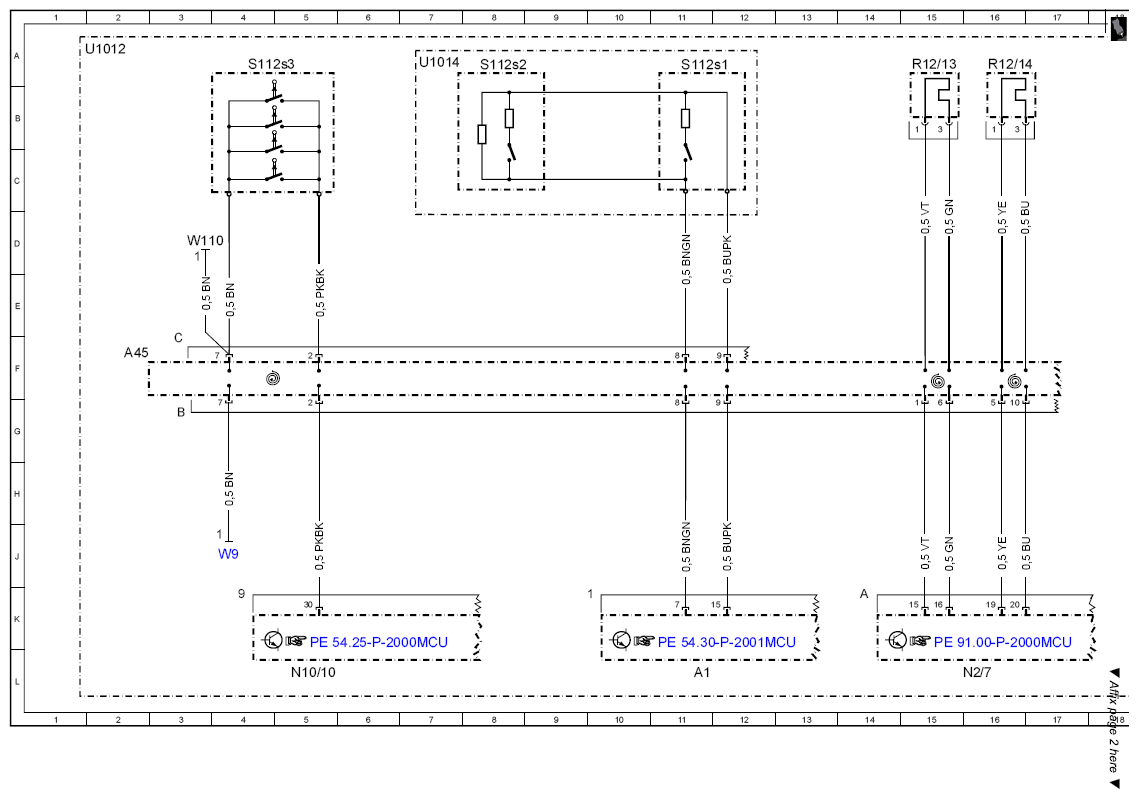

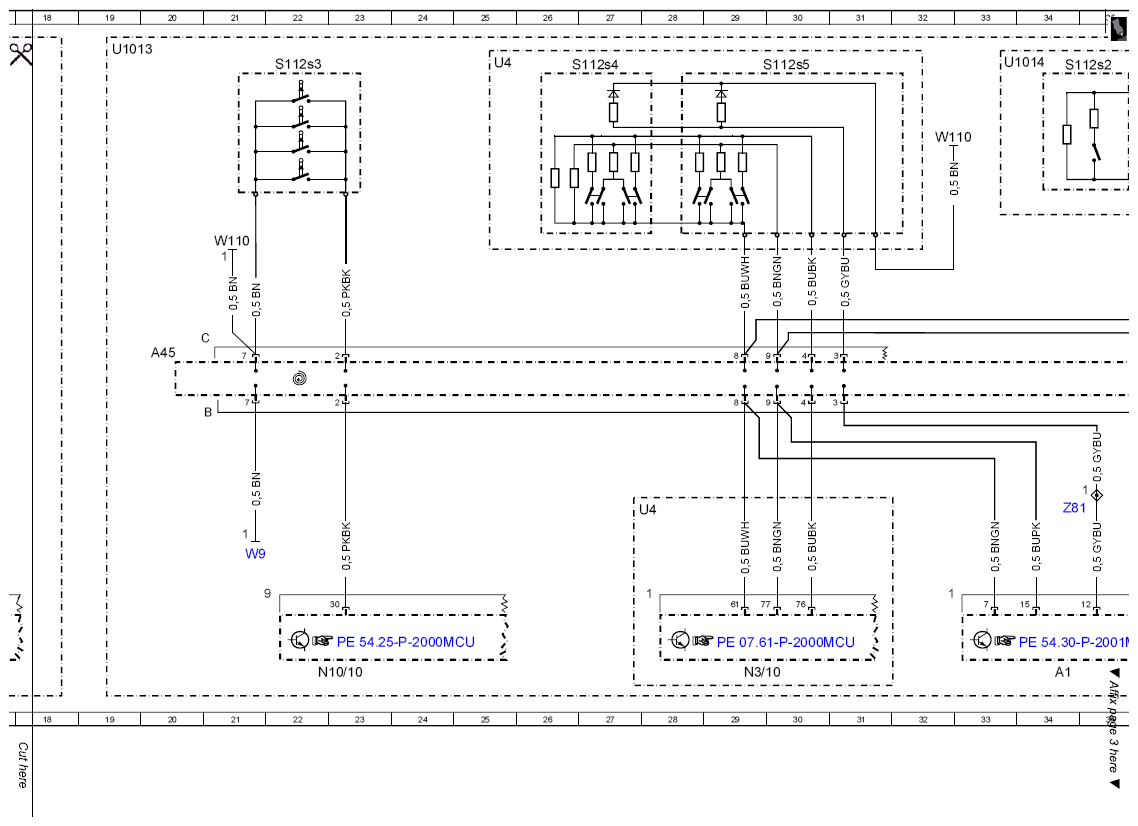

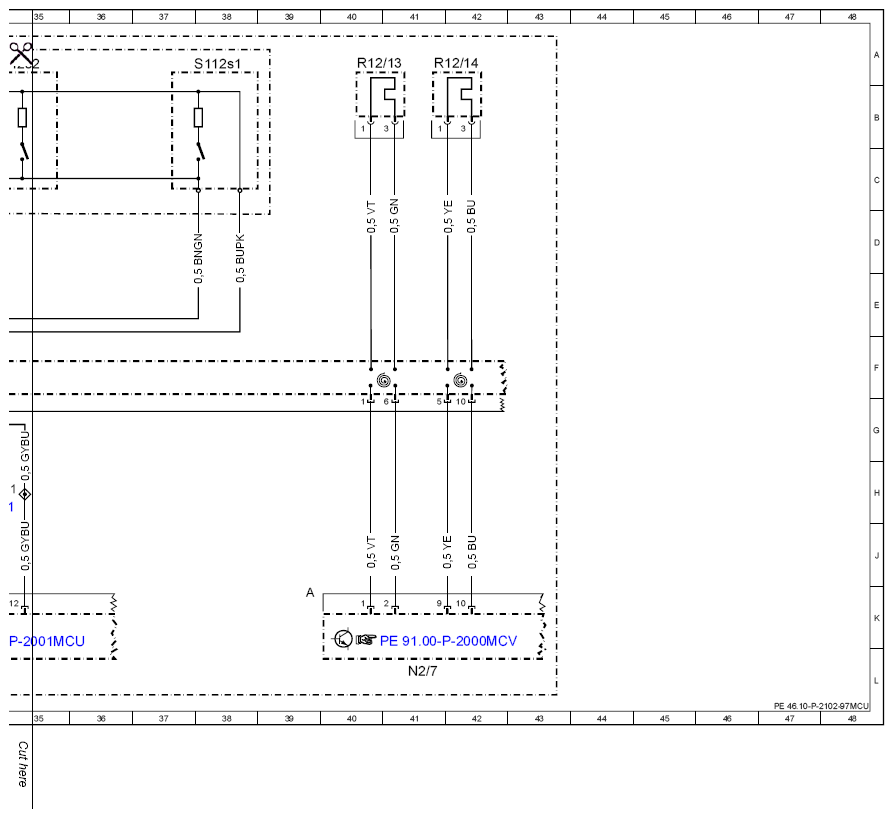

Document title: Steering wheel wiring diagram
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 11L |
| A1 | Instrument cluster | 34L |
| A45 | Fanfare horns and airbag clock spring contact | 2F |
| A45 | Fanfare horns and airbag clock spring contact | 20F |
| N10/10 | SAM control unit | 5L |
| N10/10 | SAM control unit | 23L |
| N2/7 | Restraint systems control unit | 16L |
| N2/7 | Restraint systems control unit | 41L |
| N3/10 | ME-SFI [ME] control unit | 29L |
| R12/13 | Driver airbag ignition squib 1 | 15A |
| R12/13 | Driver airbag ignition squib 1 | 40A |
| R12/14 | Driver airbag ignition squib 2 | 16A |
| R12/14 | Driver airbag ignition squib 2 | 42A |
| S112s1 | Steering wheel gear shifter PLUS | 11A |
| S112s1 | Steering wheel gear shifter PLUS | 38A |
| S112s2 | Steering wheel gear shifter MINUS | 8A |
| S112s2 | Steering wheel gear shifter MINUS | 34A |
| S112s3 | Fanfare horn system button | 4A |
| S112s3 | Fanfare horn system button | 22A |
| S112s4 | Left cruise control switch | 27A |
| S112s5 | Right cruise control switch | 30A |
| U1012 | Valid up to 30/08/2010 | 1A |
| U1013 | Valid as of 31/08/2010 | 19A |
| U1014 | Valid for steering wheel shifting | 7A |
| U1014 | Valid for steering wheel shifting | 33A |
| U4 | Valid for cruise control | 25A |
| U4 | Valid for cruise control | 27H |
| W110 | Ground on steering wheel | 3D |
| W110 | Ground on steering wheel | 21D |
| W110 | Ground on steering wheel | 32B |
| W9 | Ground (left front, at lamp unit) | 4J |
| W9 | Ground (left front, at lamp unit) | 21J |
| Z81 | Circuit 58d connector sleeve | 34H |
