Overview of wiring diagrams for climate control - PE83.00-P-1100MCU
MODEL 451
| PE83.30-P-2000MCU | Wiring diagram of air conditioning | Model 451 except 451.391 /491 | PE83.30-P-2000MCU |
| PE83.30-P-2000MEV | Wiring diagram of air conditioning | Model 451.391/ 491 | PE83.30-P-2000MEV |
| PE83.30-P-2050MCU | Electrical function schematic for air conditioning | Model 451 | PE83.30-P-2050MCU |
| PE83.55-P-2001MEV | Wiring diagram for electric refrigerant compressor control unit | Engine 780.009 in model 451.391 /491 | PE83.55-P-2001MEV |
Document number: pe82.85-p-2002-97mcu

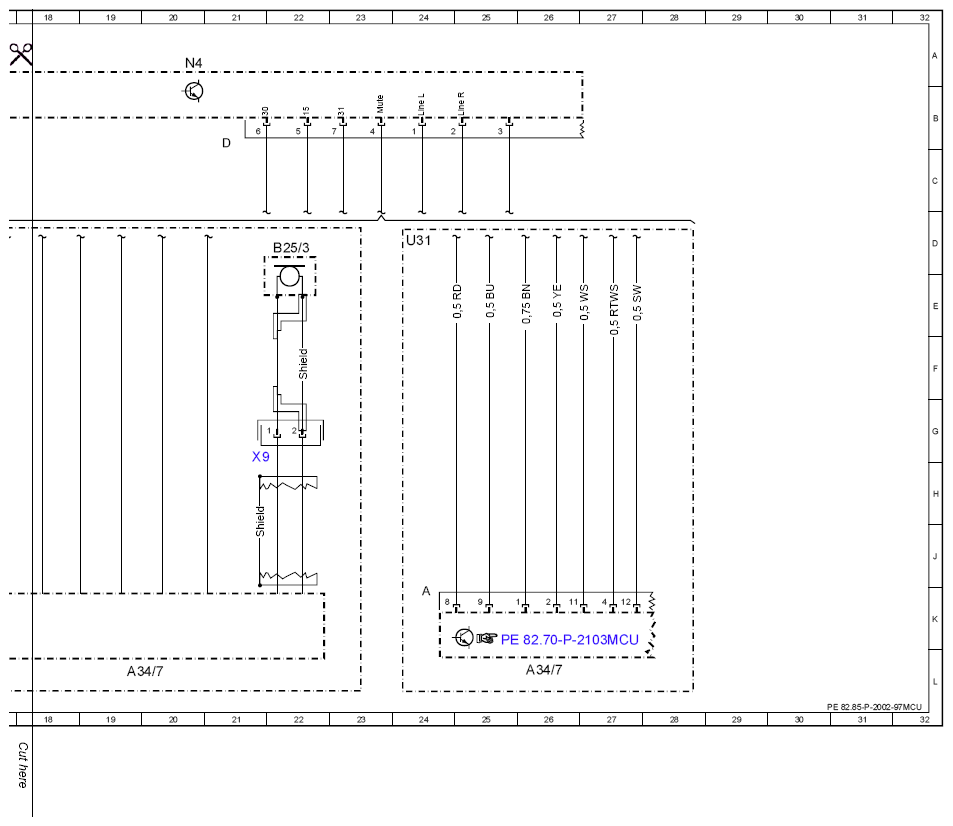

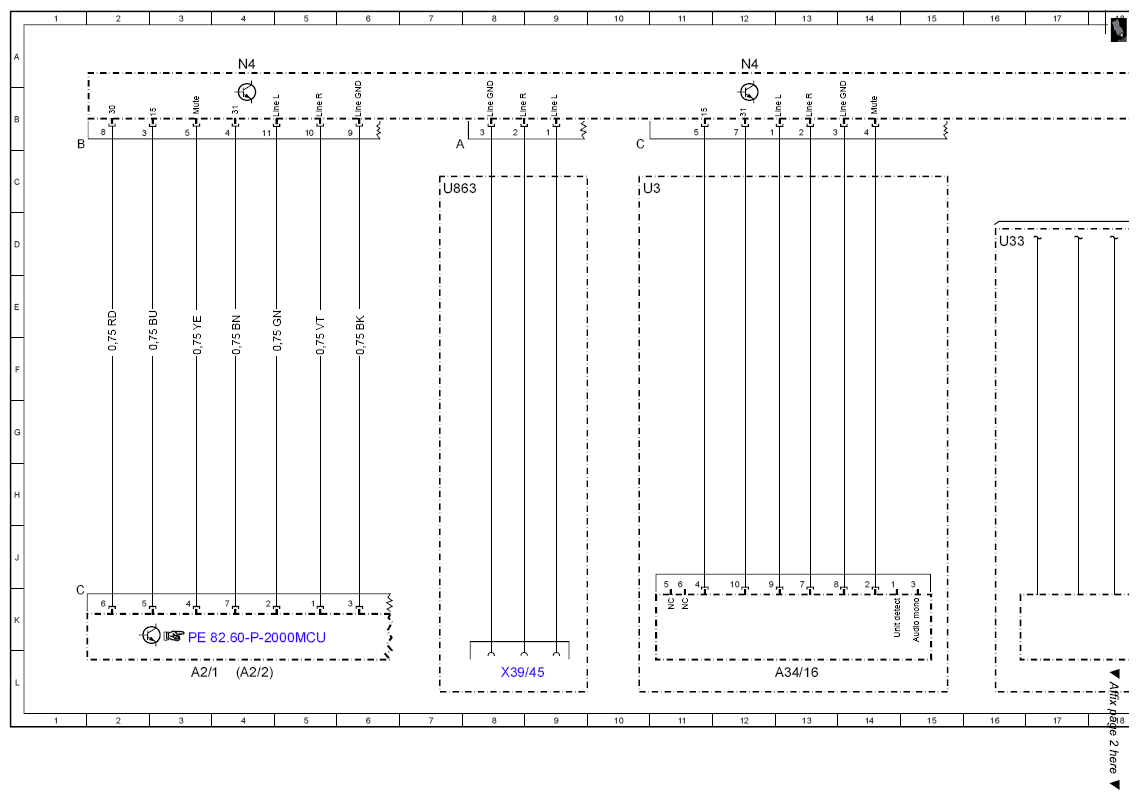

Document title: Wiring diagram of communications interface (KOM)
| Code: | Designation: | Position: |
|---|---|---|
| A2/1 | smart radio 9 | 3L |
| A2/2 | smart radio 10 | 4L |
| A34/16 | PND (personal navigation device) holder | 13L |
| A34/7 | Bluetooth module | 19L |
| B25/3 | Bluetooth microphone | 22D |
| N4 | Communication control unit | 12A |
| N4 | Communication control unit | 4A |
| N4 | Communication control unit | 20A |
| U16 | Valid for Bluetooth | |
| U3 | Valid for PND (Personal Navigation Device) | 10C |
| U863 | Valid for external audio source | 7C |
| X39/45 | External audio source separation point | 8L |
| X9 | Bluetooth microphone connector | 21G |
