Secure vehicle on vehicle lift - AR00.60-P-0100MCC

MODEL 450, 451, 452, 454

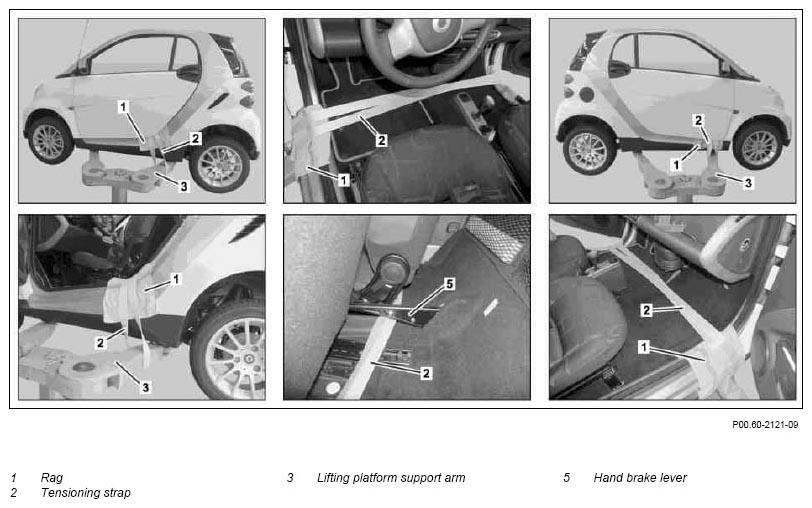

Fig 1: Securing Vehicle On Vehicle Lift

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 450, 451, 452

Illustrated on model 451

Model 450, 451 shown on model 451 with code (X22) RHD beverage holder

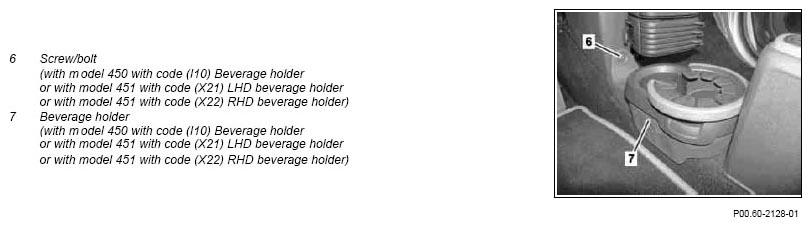

Fig 2: Identifying Beverage Holder With Screw And Bolt

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 454

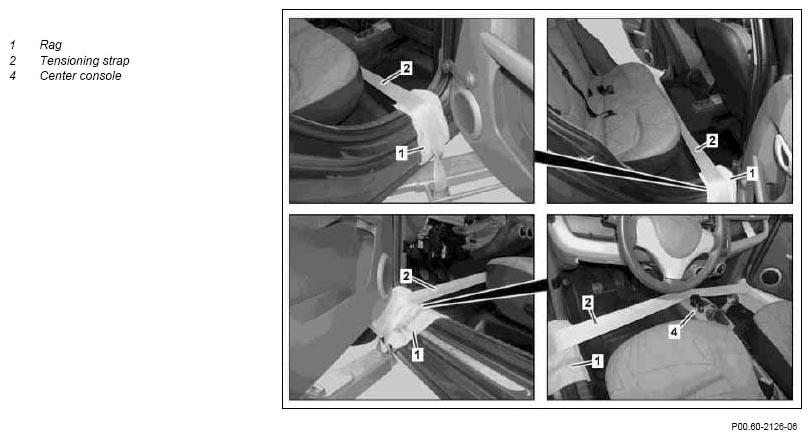

Fig 3: Identifying Rag, Tensioning Strap And Center Console

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

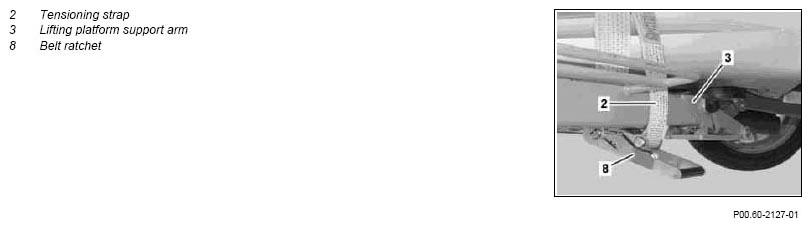

Fig 4: Lifting Platform Support Arm With Tensioning Strap And Belt Ratchet

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Secure vehicle at front
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Move driver seat and front passenger seat back and into end position
2	Remove screw/bolt (6) and remove cup holder (7)	With model 450 with code (I10) Beverage holder, With model 451 with code (X21) LHD beverage holder or with code (X22) RHD beverage holder
3	Route tensioning strap (2) via center tunnel through the vehicle	Cover up the floor in the vehicle interior to ensure that it is not soiled by the tensioning strap (2). Use tensioning strap (2) with following properties: Length: 8 m Width: 50 mm Maximum elongation: 7 % Standard force of the hand: 50 daN Standard application force: 560 daN Permissible lashing force: 5000 daN
4	Raise vehicle with vehicle lift
5	Route tensioning strap (2) around left and right vehicle lift support arms (3) and clamp in place	Place a rag (1) between the tensioning strap (2) and rubber door seal as well as between the tensioning strap (2) and body to ensure that they are not damaged. The belt ratchet (8) must be located at the bottom of the vehicle lift support arm (3).
6	Dismantle in reverse order.	The tensioning strap (2) may only be removed once the repair work has been completed to ensure that the vehicle does not fall down.
	Secure vehicle at rear
7	Move driver seat and front passenger seat forward and into end position
8.1	Route tensioning strap (2) under the hand brake lever (5) via the center tunnel and through the vehicle	Model 450, 451, 452 Cover up the vehicle interior to ensure that it is not soiled by the tensioning strap (2). Use tensioning strap (2) with following properties: Length: 8 m Width: 50 mm Maximum elongation: 7 % Standard force of the hand: 50 daN Standard application force: 560 daN Permissible lashing force: 5000 daN
8.2	Route tensioning strap (2) in rear between rear bench seat and center console (4) via the center tunnel through the vehicle	On model 454 Cover up the vehicle interior to ensure that it is not soiled by the tensioning strap (2). Use tensioning strap (2) with following properties: Length: 8 m Width: 50 mm Maximum elongation: 7 % Standard force of the hand: 50 daN Standard application force: 560 daN Permissible lashing force: 5000 daN
9	Raise vehicle with vehicle lift
10	Route tensioning strap (2) around left and right vehicle lift support arms (3) and clamp in place	Place a rag (1) between the tensioning strap (2) and rubber door seal as well as between the tensioning strap (2) and body to ensure that they are not damaged. The belt ratchet (8) must be located at the bottom of the vehicle lift support arm (3).
11	Dismantle in reverse order.	The tensioning strap (2) may only be removed once the repair work has been completed to ensure that the vehicle does not fall down.
