Lower fuel tank and position - AR47.10-P-4100-03MCU

FUEL TANK

Number	Designation		Model 451.3/4
BA47.10-P-1001-01F	Bolt, fuel tank to body	Nm	13

Fig 1: Identifying Removal Assembly (450 589 02 62 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on removed diagonal struts

Support fuel tank (1) with a transmission jack and a removal fixture
Telescopic lifter
Unscrew bolts (2).
Installation: Replace self-locking bolts (2).
Screw in bolts of the size M8 80 instead of bolt (2) by about 5 threads.

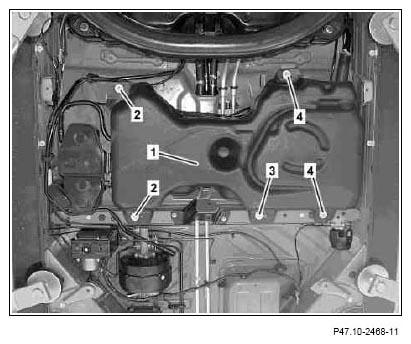

Fig 2: Identifying Fuel Tank And Bolts
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Unscrew bolt (3).
Installation: Install new self-locking bolt (3)
Loosen bolts (4).
Installation: Replace self-locking bolts (4).
Carefully lower fuel tank (1).
Ensure that the electrical connector as well as the fuel lines on the fuel pump with fuel level sensor are not damaged since they have to be replaced otherwise.
Install in the reverse order.
