Attaching/removing engine support fixture - AR01.10-P-2400-06MCU

Fig 1: Identifying Mount (451 589 00 62 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Attaching

1. Position main assembly lifting table with universal main assembly mount (1) under engine and transmission. Main assembly lifting table and universal main assembly mount
2. Fasten mount (2) on timing case cover (3).
3. Position mounting plate (4) under the oil pan position mounting plate (5) under the transmission. Then adjust height of the mount (2) and mounting plates (4, 5) appropriately.

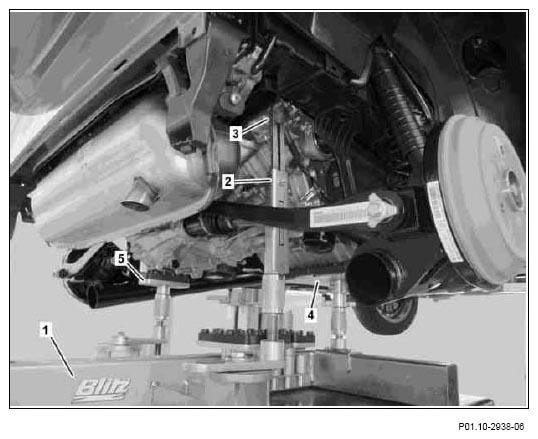

   Fig 2: Attaching Engine Support Fixture

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Remove

4. Lower main assembly lifting table with universal main assembly mount (1) and pull to the front under the vehicle.
5. Remove mount (2) from timing case cover (3).
