Remove/install cockpit switch group - AR54.25-P-1000MCC

MODEL 451.3/ 4

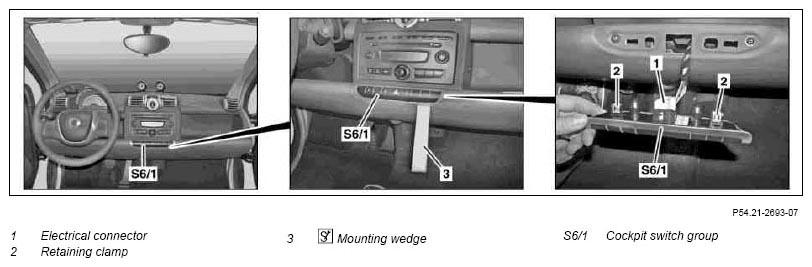

Fig 1: Identifying Electrical Connector, Retaining Clamp, Mounting Wedge & Cockpit Switch Group

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Loosen cockpit switch group (S6/1) using assembly wedge (3) and remove until the electrical connector (1) is accessible		Fig 2
2	Separate electrical connector (1) and remove cockpit switch group (S6/1)	Check retaining clips (2), replace is necessary.
3	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODEL 451.3/ 4

Fig 1: Identifying Electrical Connector, Retaining Clamp, Mounting Wedge & Cockpit Switch Group

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Loosen cockpit switch group (S6/1) using assembly wedge (3) and remove until the electrical connector (1) is accessible		Figure
2	Separate electrical connector (1) and remove cockpit switch group (S6/1)	Check retaining clips (2), replace is necessary.
3	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
