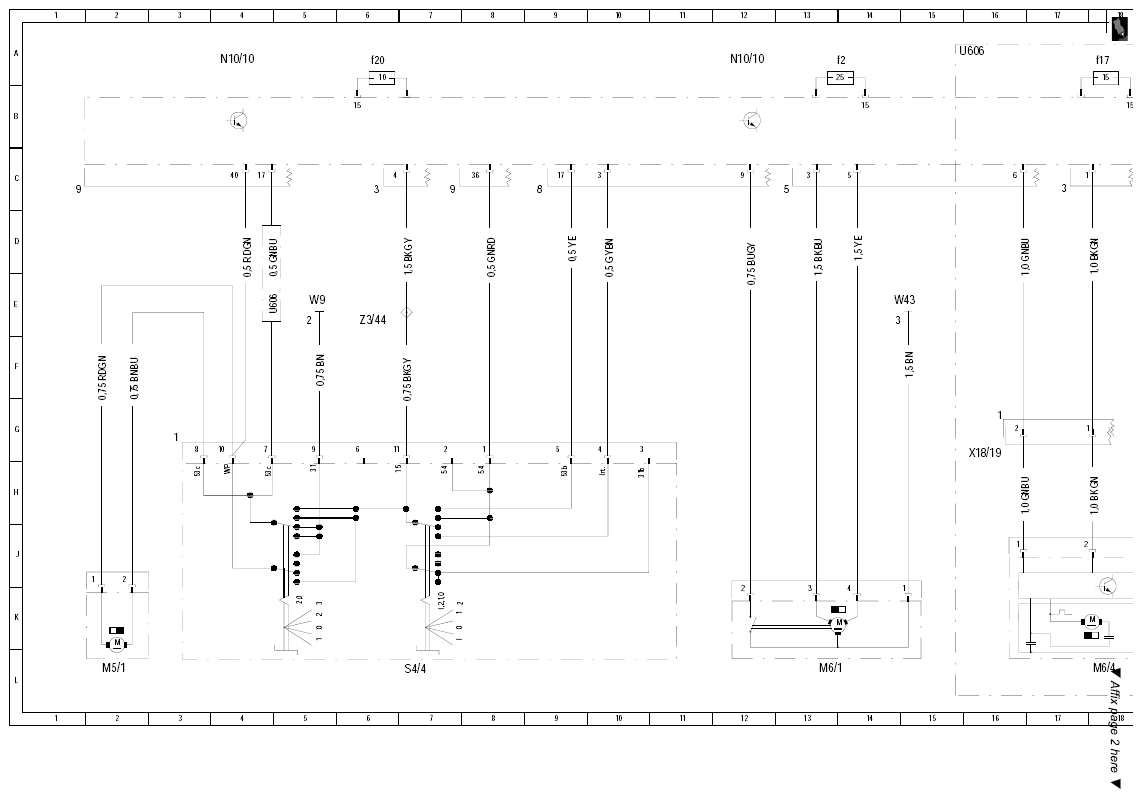

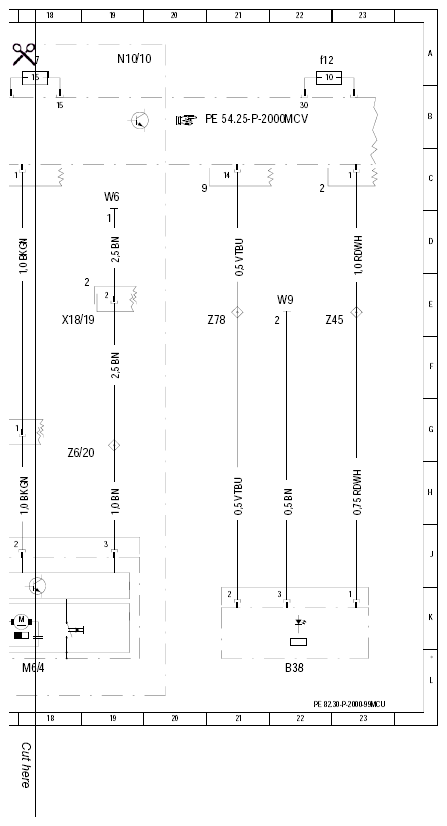

| B38 |
Rain sensor/light sensor |
22 L |
| M5/1 |
Windshield washer fluid pump |
2 L |
| M6/1 |
Wiper motor |
13 L |
| M6/4 |
Tailgate wiper motor |
18 L |
| N10/10 |
SAM control unit |
4 A |
| N10/10 |
SAM control unit |
12 A |
| N10/10 |
SAM control unit |
19 A |
| N10/10f12 |
Fuse 12 |
22 A |
| N10/10f17 |
Fuse 17 |
17 A |
| N10/10f2 |
Fuse 2 |
13 A |
| N10/10f20 |
Fuse 20 |
6 A |
| S4/4 |
Right wiper switch |
7 L |
| U606 |
Valid for all except convertibles |
5 E |
| U606 |
Valid for all except convertibles |
15 A |
| W43 |
Ground (outside left fire wall) |
14 E |
| W6 |
Ground (left wheelhousing in trunk) |
19 C |
| W9 |
Ground (at left headlamp unit) |
5 E |
| W9 |
Ground (at left headlamp unit) |
22 E |
| X18/19 |
Trunk lid connector |
16 H |
| X18/19 |
Trunk lid connector |
18 E |
| Z3/44 |
Instrument cluster - radio circuit 15 connector sleeve (fused) |
6 E |
| Z45 |
ATA [EDW] sensor circuit 30 voltage supply connector sleeve |
22 E |
| Z6/20 |
Trunk lid ground connector sleeve |
18 H |
| Z78 |
Cockpit LIN connector sleeve |
20 E |
