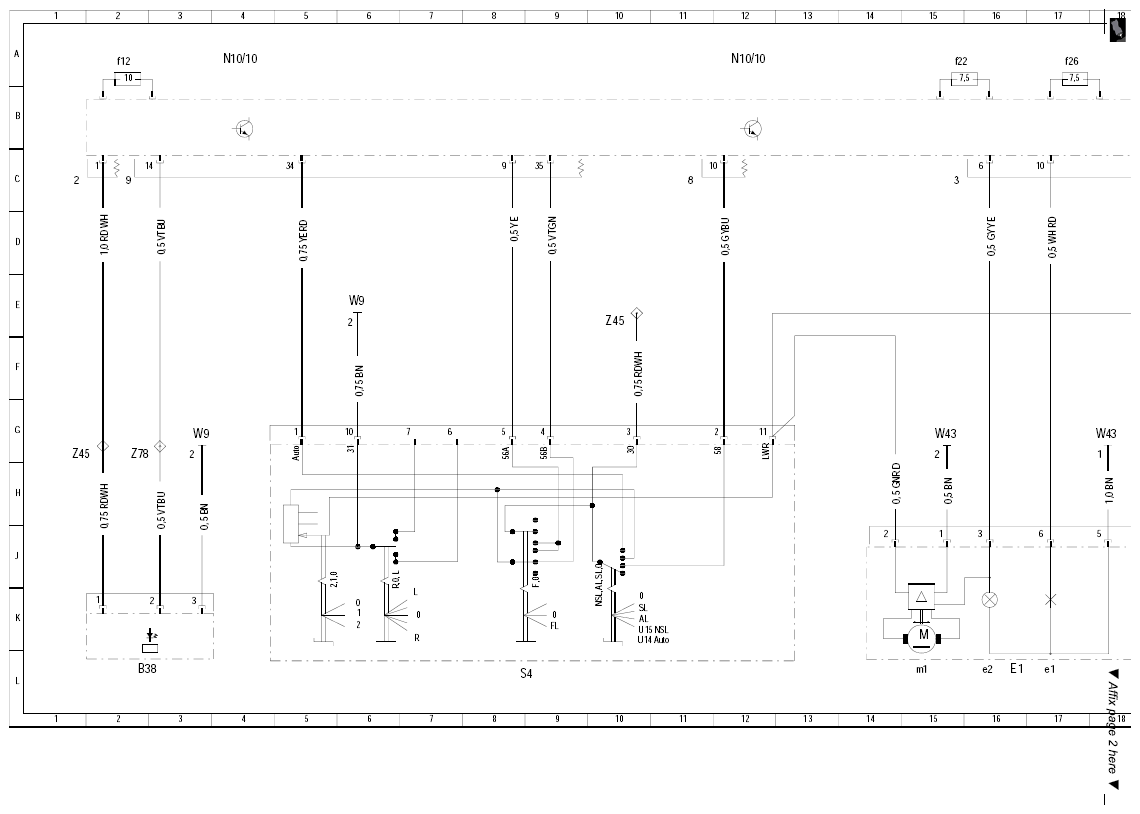

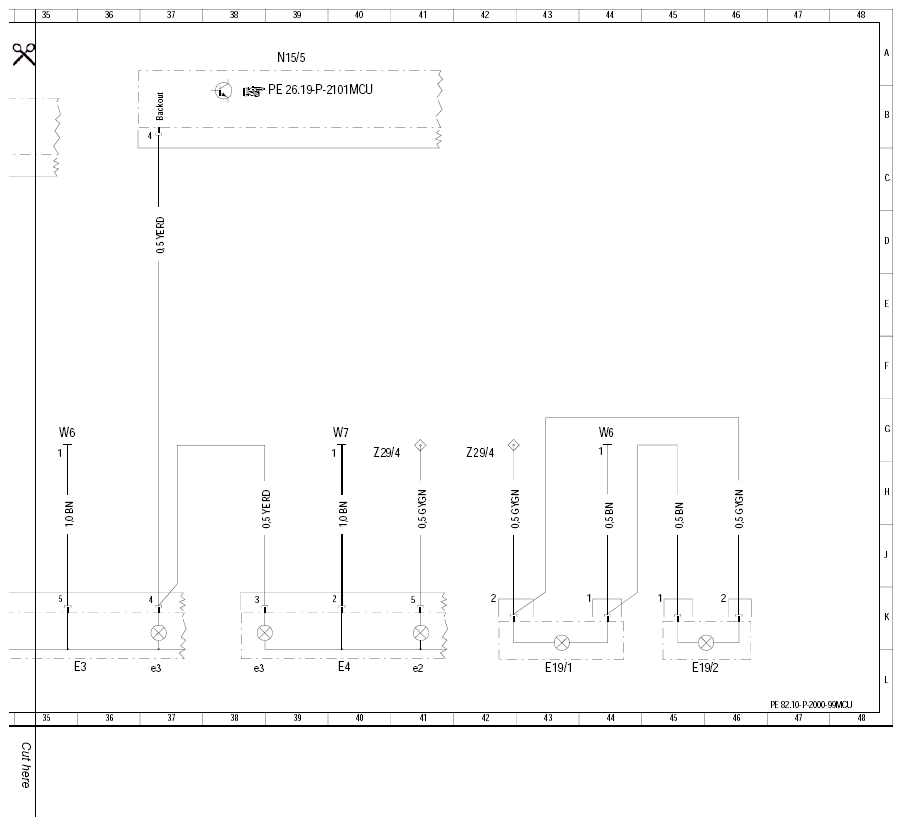

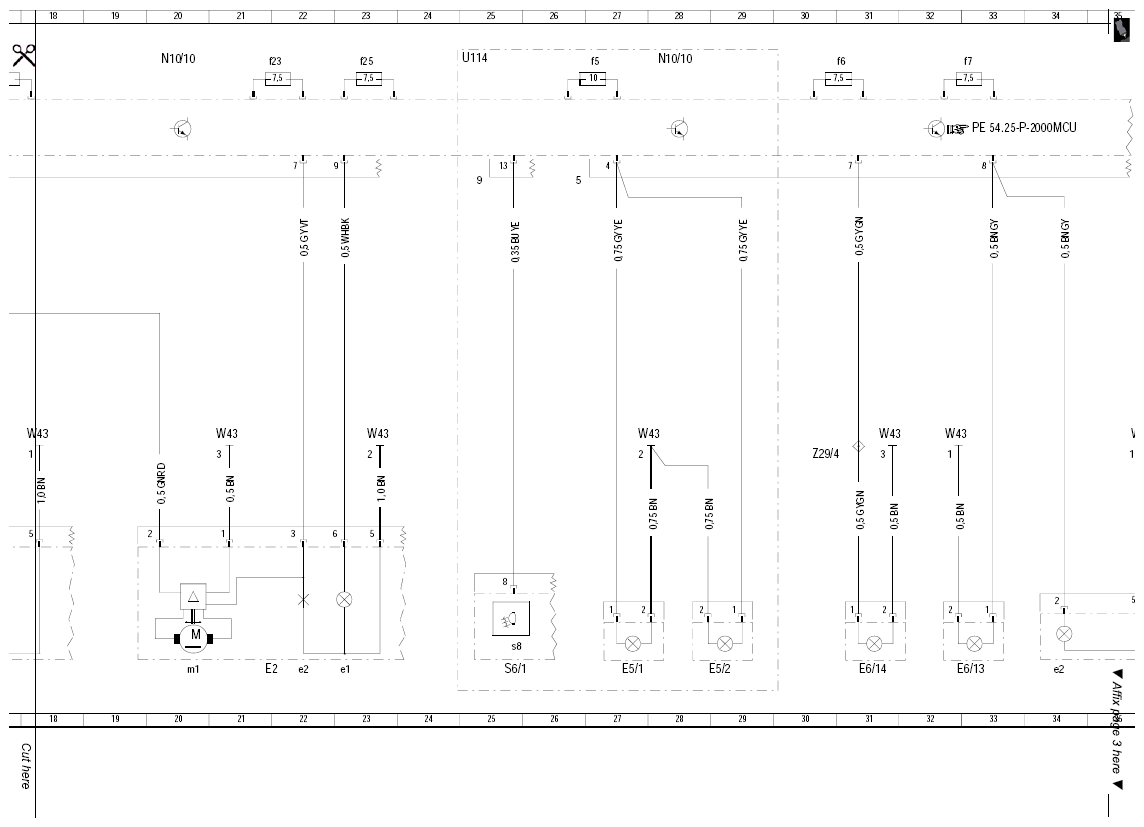

| B38 |
Rain sensor/light sensor |
2 L |
| E1 |
Left front headlamp unit |
16 L |
| E19/1 |
Left license plate lamp |
43 L |
| E19/2 |
Right license plate lamp |
45 L |
| E1e1 |
Left high beam |
17 L |
| E1e2 |
Left low beam |
16 L |
| E1m1 |
Left headlamp range adjustment motor |
15 L |
| E2 |
Right front headlamp unit |
21 L |
| E2e1 |
Right high beam |
22 L |
| E2e2 |
Right low beam |
22 L |
| E2m1 |
Right headlamp range adjustment motor |
20 L |
| E3 |
Left taillamp |
35 L |
| E3e2 |
Left tail light |
34 L |
| E3e3 |
Left backup lamp |
37 L |
| E4 |
Right taillamp |
40 L |
| E4e2 |
Right taillamp |
41 L |
| E4e3 |
Right backup lamp |
38 L |
| E5/1 |
Left fog lamp |
27 L |
| E5/2 |
Right fog lamp |
28 L |
| E6/13 |
Left standing lamp |
32 L |
| E6/14 |
Right standing lamp |
31 L |
| N10/10 |
SAM control unit |
4 A |
| N10/10 |
SAM control unit |
12 A |
| N10/10 |
SAM control unit |
20 A |
| N10/10 |
SAM control unit |
28 A |
| N10/10f12 |
Fuse 12 |
2 A |
| N10/10f22 |
Fuse 22 |
15 A |
| N10/10f23 |
Fuse 23 |
21 A |
| N10/10f25 |
Fuse 25 |
23 A |
| N10/10f26 |
Fuse 26 |
17 A |
| N10/10f5 |
Fuse 5 |
26 A |
| N10/10f6 |
Fuse 6 |
30 A |
| N10/10f7 |
Fuse 7 |
32 A |
| N15/5 |
Electronic selector lever module control module |
39 A |
| S4 |
Combination switch |
8 L |
| S6/1 |
Cockpit switch group |
25 L |
| S6/1s8 |
Fog lamps switch |
25 L |
| U114 |
Valid for fog lights |
24 A |
| W43 |
Ground (outside left fire wall) |
15 G |
| W43 |
Ground (outside left fire wall) |
18 G |
| W43 |
Ground (outside left fire wall) |
21 G |
| W43 |
Ground (outside left fire wall) |
23 G |
| W43 |
Ground (outside left fire wall) |
27 G |
| W43 |
Ground (outside left fire wall) |
31 G |
| W43 |
Ground (outside left fire wall) |
32 G |
| W6 |
Ground (left wheelhousing in trunk) |
35 G |
| W6 |
Ground (left wheelhousing in trunk) |
44 G |
| W7 |
Ground (right wheelhousing in trunk) |
40 G |
| W9 |
Ground (at left headlamp unit) |
3 G |
| W9 |
Ground (at left headlamp unit) |
6 E |
| Z29/4 |
Circuit 58R (fused) connector sleeve |
30 H |
| Z29/4 |
Circuit 58R (fused) connector sleeve |
40 H |
| Z29/4 |
Circuit 58R (fused) connector sleeve |
42 H |
| Z45 |
ATA [EDW] sensor circuit 30 voltage supply connector sleeve |
1 H |
| Z45 |
ATA [EDW] sensor circuit 30 voltage supply connector sleeve |
10 E |
| Z78 |
Cockpit LIN connector sleeve |
2 H |
