Remove/install cover at selector lever - AR68.20-P-2309MCU

MODEL 451.3 /4

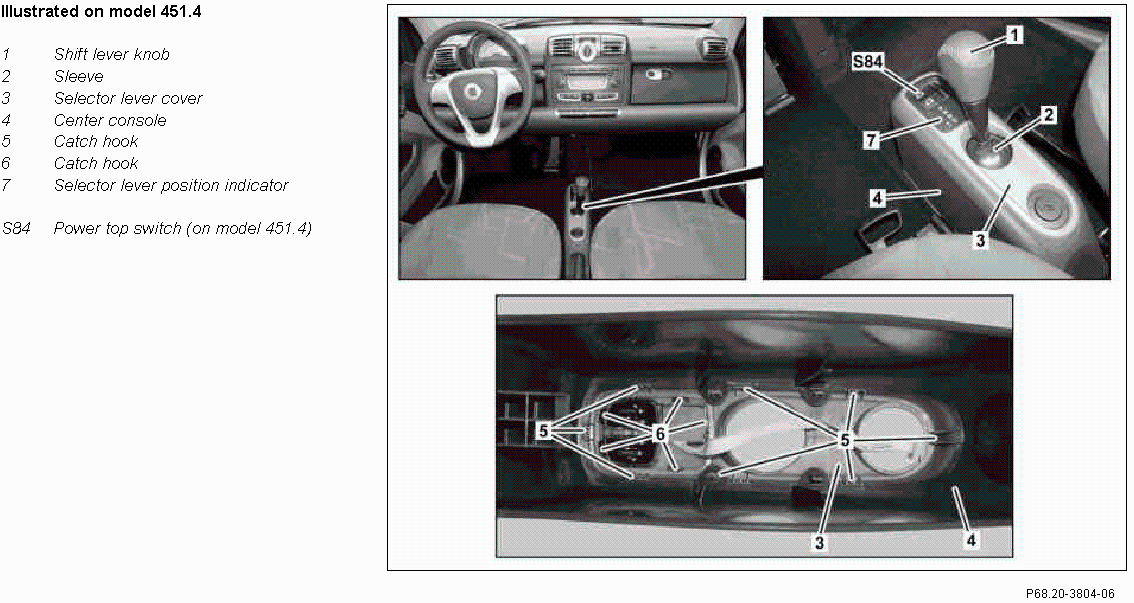

Fig 1: Identifying Selector Lever Cover Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove shift lever knob (1)	AR26.60-P-6601MCU
2	Remove power top switch (S84)	On model 451.4	AR77.39-P-1000MCU
3	Unclip catch hook (6) from selector lever position disply (7), remove selector lever position display (7) upward and lay down to side with electrical line connected	The catch hooks (6) arer shown iwth the center console (4) removed, for beter illustration.
4	Loosen catch hook (5) on selector lever cover (3)	The catch hooks (5) are shown with the ceneter console (4) removed, for better illustration.
5	Lift selector lever cover (3), guide selector lever position display (7) through opening in selector lever cover (3) and remove selector lever cover (3)
6	Install in the reverse order
