Remove/install main fuse of secondary air injection pump - AR54.15-P-0050MCU

MODEL 451.3 /4 (except 451.391 /491)

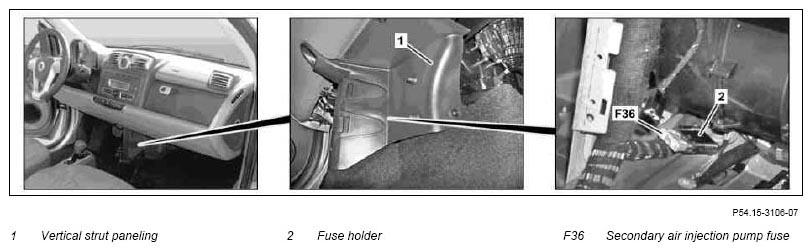

Fig 1: Identifying Vertical Strut, Fuse Holder And Secondary Air Injection Pump Fuse

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove vertical strut paneling (1)		AR68.00-P-1500MCC
2	Pull fuse of secondary air injection pump (F36) out of fuse holder (2)
3	Install in the reverse order
