Remove/install main fuse of positive line - AR54.15-P-0051MCU

MODEL 451.3 /4 (except 451.391 /491)

Starter/alternator prefuse

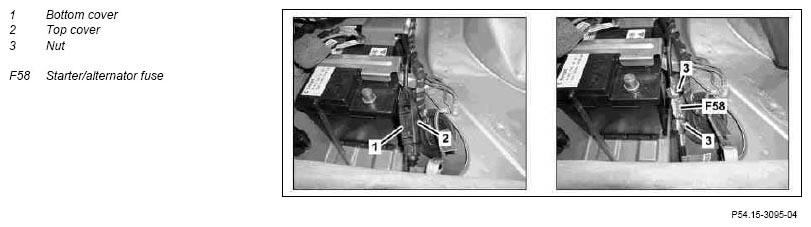

Fig 1: Identifying Bottom Cover, Top Cover, Nut And Starter/Alternator Fuse
G07075880Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
1 Disconnect battery ground line   AR54.10-P-0003MCC
2 Unclip top cover (2) from bottom cover (1) and remove top cover (2) as well as bottom cover (1)
3 Unscrew nuts (3) and remove starter/alternator fuse (F58) NOTES Replace self-locking nuts (3).
4 Install in the reverse order
