Remove/install additional instruments - AR54.30-P-6080MCC

MODEL 451.3 /4 up to 30.8.10 with CODE (V31) Cockpit clock and tachometer package

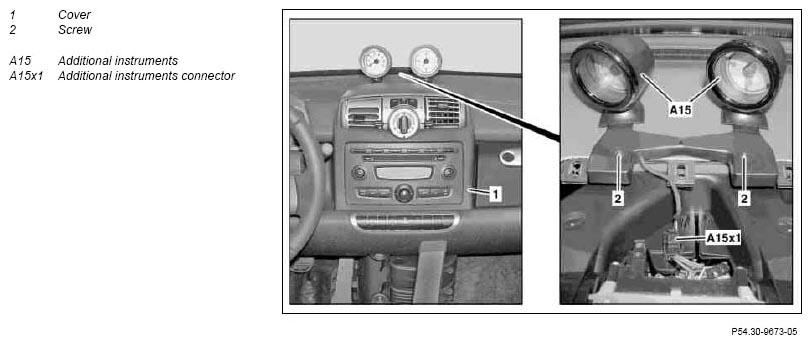

Fig 1: Identifying Cover, Screw And Additional Instruments With Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove cover (1) on center console		AR68.20-P-2350MCC
2	Separate additional instruments connector (A15x1)
3	Undo bolts (2) and remove additional instruments (A15)
4	Install in the reverse order
5	Set clock of additional instruments (A15)
