Data link connector component description - GF54.22-P-2200MCC

MODEL 451.3 /4

Shown on LHD model

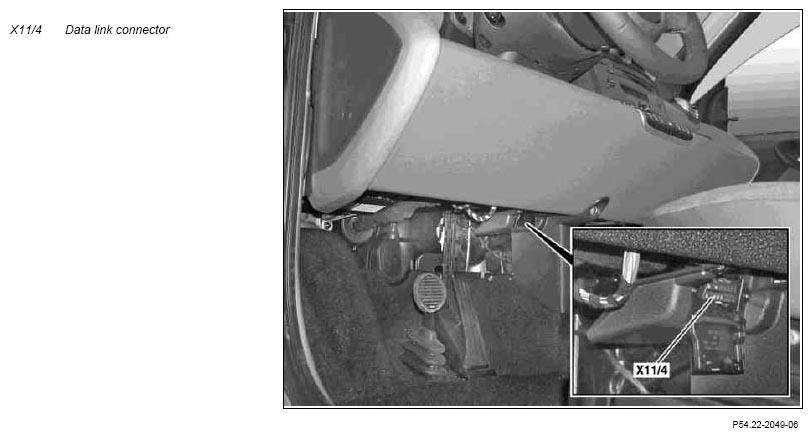

Fig 1: Identifying Data Link Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The data link connector is located in the footwell on the driver-side.

Task

The data link connector is the interface for the connection of STAR DIAGNOSIS to the Controller Area Network (data bus/CAN bus) (CAN).
