Location and assignment of line and plug connectors, underfloor - GF00.19-P-1000-24MCU

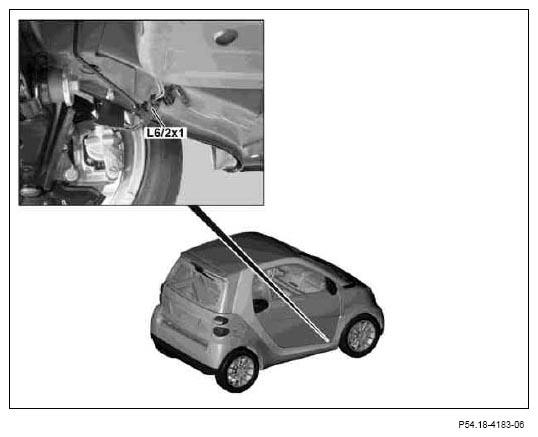

Fig 1: Locating Line And Underfloor Compartment Plug Connectors (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

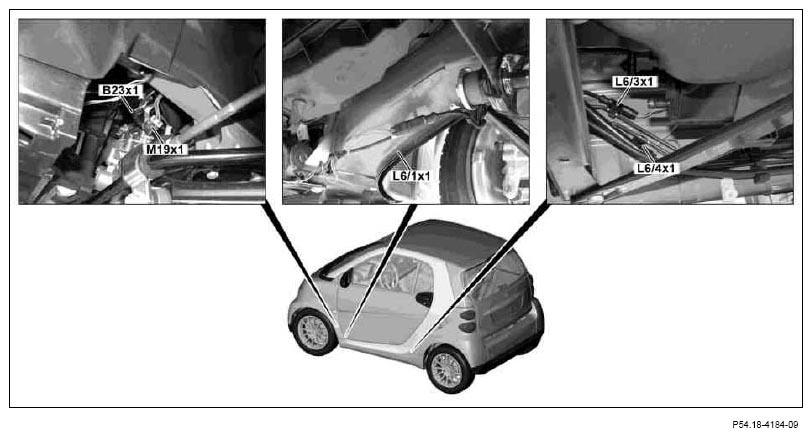

Fig 2: Locating Line And Underfloor Compartment Plug Connectors (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Code	Designation	Cable colors		Cable colors	Notes
B23x1	Power steering torque sensor connector
			1	gn
			2	YE
			3	BN
			4	BN
L6/1x1	RPM sensor connector
			1	RDGN
			2	BUGN
L6/2x1	RPM sensor connector
			1	RDGY
			2	BUGY
L6/3x1	RPM sensor connector
			1	BUYE
			2	RDYE
L6/4x1	RPM sensor connector
			1	RDBK
			2	BUBK
M19x1	Power steering connector
			1	RD
			2	BU
