Location and assignment of line and plug connectors, interior compartment, right - GF00.19-P-1000-05MCU

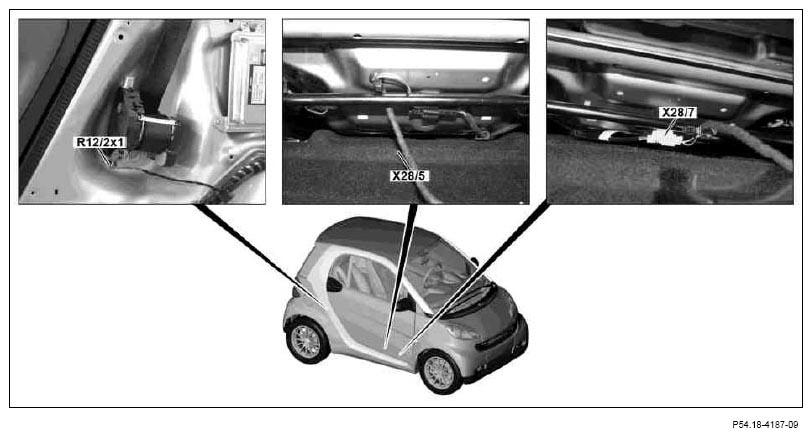

Fig 1: Locating Line And Interior Compartment Plug Connectors - Right (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

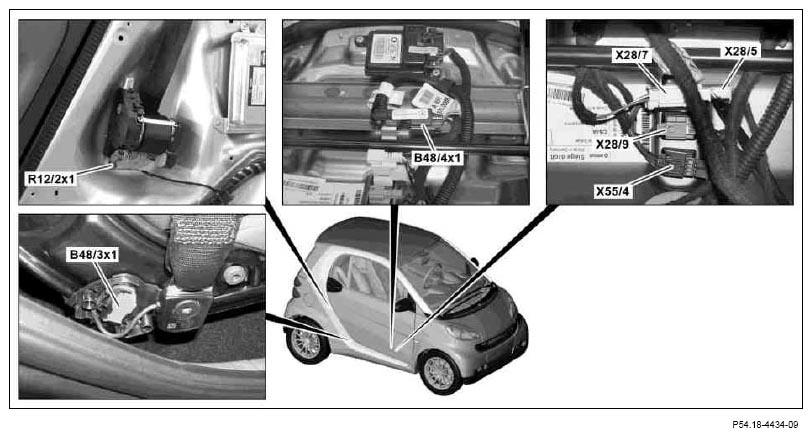

Fig 2: Locating Line And Interior Compartment Plug Connectors - Right (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Code	Designation	Cable colors		Cable colors	Notes
B48/3x1	Belt tension sensor connector
		BNWH	1
		BUWH	2
		BKRD	3
B48/4x1	Seat occupied recognition pressure sensor connector
		RDYE	1
		BUYE	2
		BU	3
R12/2x1	Right ETR squib connector
			1	BNYE
			2	BU
X28/5	Front passenger seat heated cushion connector
		RDYE	1	RDYE
		BN	2	BN
X28/7	Front passenger head/thoraxbag connector
		RDVT	1	RDVT
		WHBN	2	WHBN
X28/9	Front passenger seat ETR [GUS] connector (2-pin)
		BNBU	1	BNBU
		BKRD	2	BKRD
X55/4	Front passenger seat connector block
		BKRD	1	BNBU
		BNRD	2	BNRD	CAN B
		BN	3	BN	CAN B
		BN	4	BN
