Location and assignment of line and plug connectors, interior compartment, left - GF00.19-P-1000-04MCU

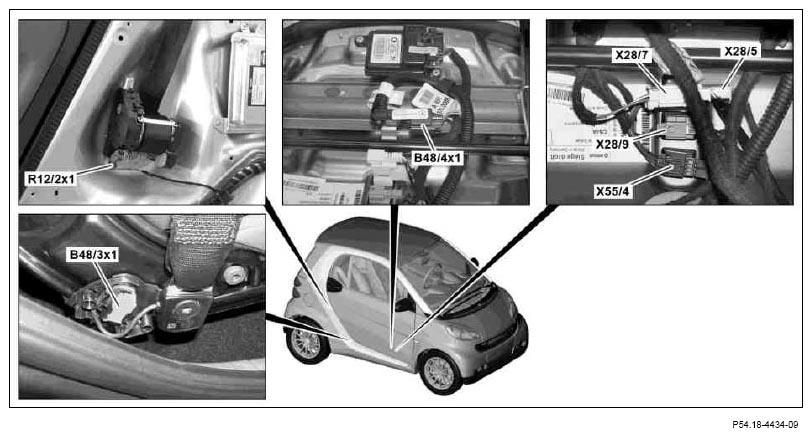

Fig 1: Locating Line And Interior Compartment Plug Connector Components - Left

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Code	Designation	Cable colors		Cable colors	Notes
R12/1x1	Left emergency tensioning retractor squib connector
			1	WHGN
			2	VTBU
X28/4	Driver seat heated cushion connector
		RDBU	1	RDBU
		BN	2	BN
X28/6	Driver head/thoraxbag connector
		RDVT	1	BURD
		WHBN	2	WHVT
X28/8	Driver seat ETR [GUS] connector (2-pin)
		GYVT	1	GYVT
		BKRD	2	BKRD
