Location and assignment of line and plug connectors, cockpit - GF00.19-P-1000-03MCU

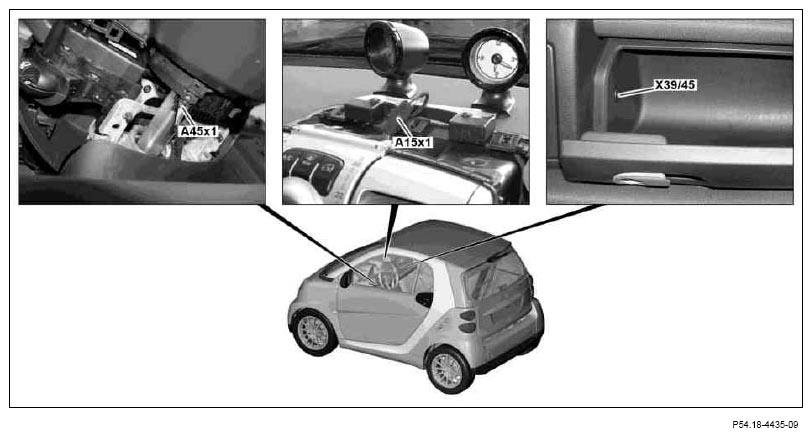

Fig 1: Locating Line And Cockpit Compartment Plug Connector Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Code	Designation	Cable colors		Cable colors	Notes
A15x1	Additional instruments connector
		RDWH	1
		VTBU	2
		BN	3
A45x1	Clock spring contact and airbag connector
		VT	1	VT
		PKBK	2	PKBK	Not SAL
		GN	6	GN
		BN	7	BN	Not SAL
			8	BNGN	SAL
			9	BUBK	SAL
		BU	10	BU
X39/45	External audio source separation point
			1
			2
			3
