Location and assignment of line and plug connectors - rear - GF00.19-P-1000-20MCU

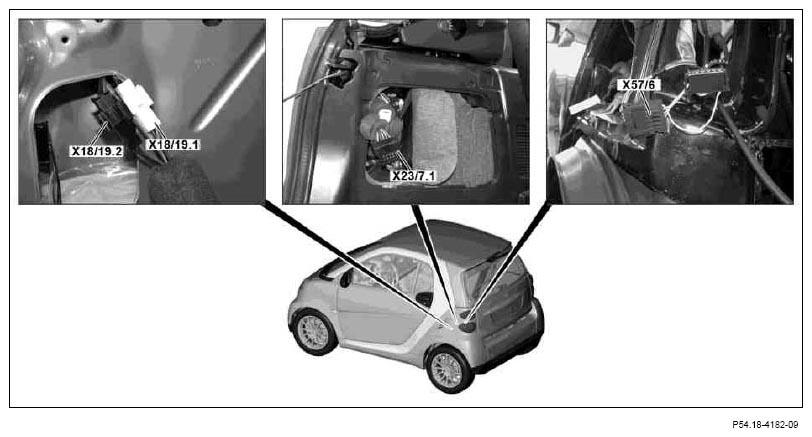

Fig 1: Locating Line And Plug Connectors - Rear (1 Of 2)
G07276775Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

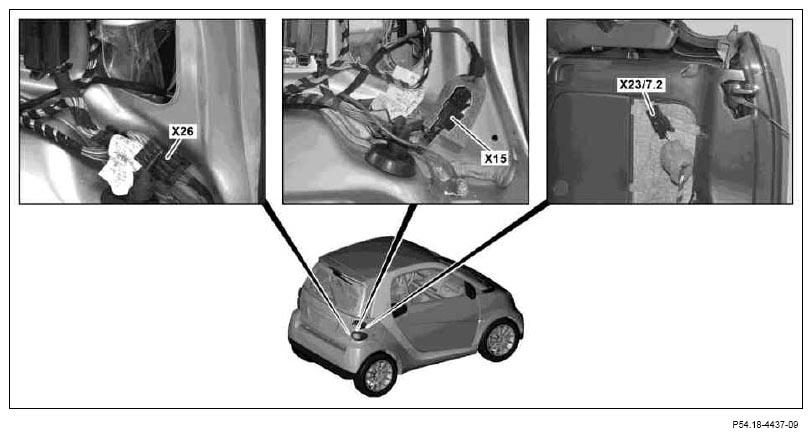

Fig 2: Locating Line And Plug Connectors - Rear (2 Of 2)
G07276776Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Code Designation Cable colors   Cable colors Notes
X15 Secondary air injection pump connector
RDBUPLUG   SOCKET RDBU
X18/19 Trunk lid connector   Connector 1 (X18/19.1) Not convertible
BKGNPLUG 1 SOCKET BKGN
GNBUPLUG 2 SOCKET GNBU
BKRDPLUG 3 SOCKET BKRD
X18/19 Trunk lid connector   Connector 2 (X18/19.2) Not convertible
BKBUPLUG 1 SOCKET BKBU
BNPLUG 2 SOCKET BN
X23/7 Soft top connector   Plug 1 (X23/7.1) Convertible
BKRDPLUG 3 SOCKET BKRD
BNPLUG 4 SOCKET BN
WHGNPLUG 5 SOCKET VTWH
BUGNPLUG 6 SOCKET YEBU
BKGNPLUG 7 SOCKET BKGN
BKWHPLUG 8 SOCKET BKWH
BKRDPLUG 10 SOCKET GYBK
RDGNPLUG 11 SOCKET RDGN
RDWHPLUG 12 SOCKET RDWH
X23/7 Soft top connector   Plug 2 (X23/7.2) Convertible
RDGNPLUG 1 SOCKET RDGN
RDWHPLUG 2 SOCKET RDWH
BNRDPLUG 3 SOCKET GYBK
YEWHPLUG 4 SOCKET GYWH
BKBUPLUG 6 SOCKET BKBU
X26 Interior/engine connector
BKYEPLUG 1 SOCKET BK
RDYEPLUG 2 SOCKET BK
RDGYPLUG 3 SOCKET BK
RDGNPLUG 4 SOCKET BK
VTPLUG 5 SOCKET BU
WHPLUG 7 SOCKET BN
BNRDPLUG 8 SOCKET BNRD
