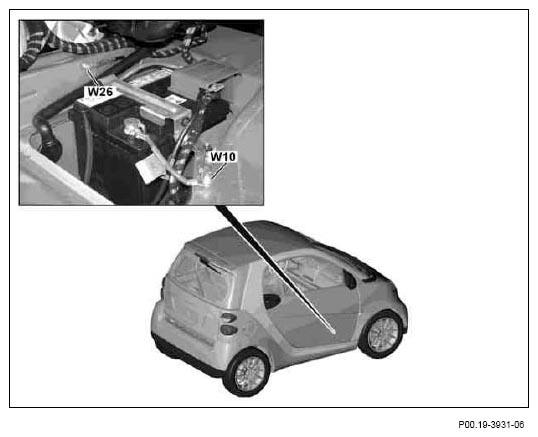

| W10 |
Ground (battery) |
|
|
|
| ATA with siren |
→ B32 |
Microwave sensor |
3 |
| |
→ G1 |
Battery |
2 |
| ATA with siren |
→ H3/2 |
Alarm siren with inclination sensor |
2 |
| |
→ N15/5 |
Electronic selector lever module control unit |
3 |
| |
→ N23 |
Heater/AC operating unit |
1.7 |
| |
→ N47-5 |
ESP control unit |
1 |
| |
→ N47-5 |
ESP control unit |
4 |
| |
→ N88 |
TPM [RDK] control unit |
2 |
| |
→ S6/1 |
Cockpit switch group |
3 |
| |
→ S9/1 |
Stop lamp switch |
1 |
| Convertible |
→ S84 |
Power soft top switch |
1 |
| |
→ X58/1 |
Interior socket |
1 |
| W26 |
Ground (transmission tunnel) |
|
|
|
| |
→ A2/1 |
smart radio 9 |
A.8 |
| |
→ A2/2 |
smart radio 10 |
A.8 |
| |
→ N2/7 |
Restraint systems control unit |
A.1 |
| |
→ X11/4 |
Data link connector |
4 |
| |
→ X11/4 |
Data link connector |
5 |
| |
→ X85/10 |
Heating or air conditioning connector |
1 |
