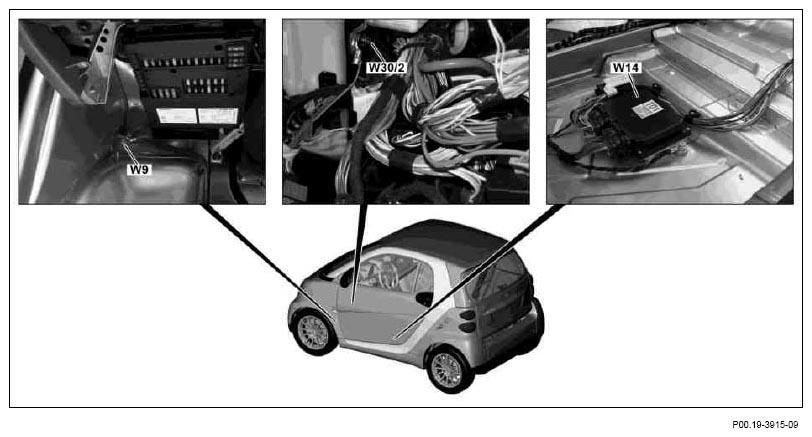

| W9 |
Ground (left front, at lamp unit) |
|
|
|
| |
→ A1 |
Instrument cluster |
1.2 |
| |
→ A15x1 |
Additional instruments connector |
3 |
| |
→ A45x1 |
Clock spring contact and airbag connector |
7 |
| Rain/light sensor |
→ B38 |
Rain sensor/light sensor |
3 |
| |
→ E15/4 |
Front interior lamp |
3 |
| |
→ N10/10 |
SAM control unit |
10.1 |
| |
→ N10/10 |
SAM control unit |
2.5 |
| Seat heater |
→ N25/5 |
Front HS [SIH] control unit |
2 |
| |
→ N49 |
Steering angle sensor |
3 |
| |
→ N57/2 |
Power window convenience feature control unit |
1.4 |
| |
→ S4 |
Combination switch |
10 |
| |
→ S4/4 |
Right wiper switch |
1.9 |
| W14 |
Left floor interior compartment ground |
|
|
|
| |
→ B24/15 |
Turn rate and lateral acceleration sensor |
1 |
| Sound system, LHD |
→ H4/29 |
Subwoofer |
7 |
| |
→ N15/6 |
Automated manual transmission control unit |
R.2 |
| |
→ N15/6 |
Automated manual transmission control unit |
R.4 |
| Seat heater, LHD |
→ X28/4 |
Driver seat heated cushion connector |
2 |
| W30/2 |
Ground; power steering pump noise suppression |
|
|
|
| Power steering |
→ Z20/73 |
Shielding connector sleeve |
|
