Location and assignment of ground points, right rear wheelhouse - GF00.19-P-2000-27MCU

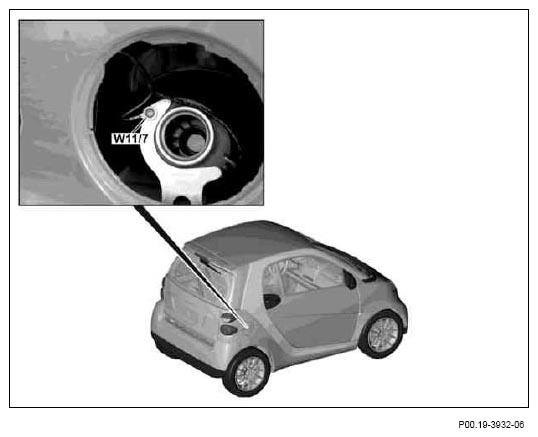

Fig 1: Identifying Tank Neck Ground

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Ground point	Designation	Component	Designation	Connector. Pin
W11/7	Ground (tank neck)
		→ W7	Ground (right wheelhouse in luggage compartment)
