Location and assignment of ground points, engine compartment, right - GF00.19-P-2000-02MCU

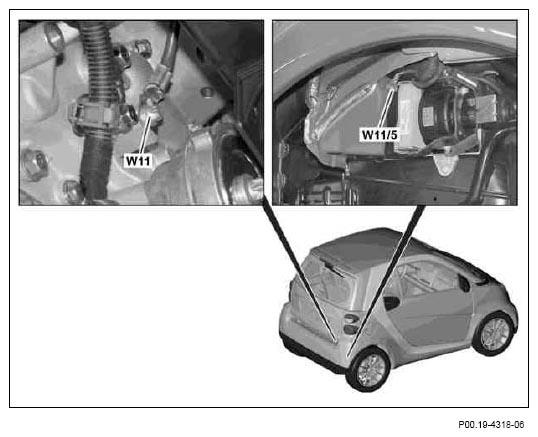

Fig 1: Locating Ground Points Of Engine Compartment - Right

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Ground point	Designation	Component	Designation	Connector. Pin
W11	Ground (engine)
		→ W11/5	Ground (engine/body)
W11/5	Ground (engine/body)
		→ M33	Secondary air injection pump	2
		→ W11	Ground (engine)
