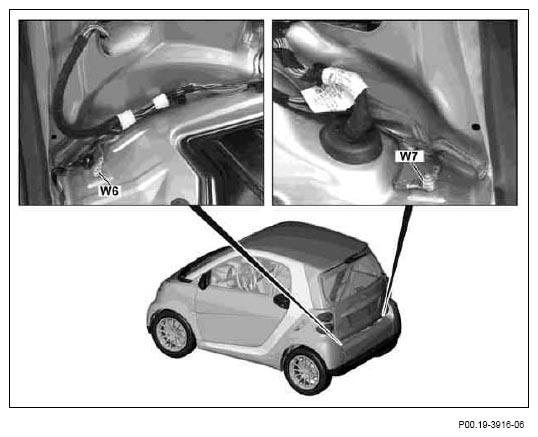

| W6 |
Ground (left wheelhouse in luggage compartment) |
|
|
|
| |
→ E3 |
Left taillamp |
5 |
| |
→ E19/1 |
Left license plate lamp |
1 |
| |
→ M14/7 |
Rear-end door CL [ZV] motor |
1 |
| Not convertible |
→ S15 |
Remote trunk opening switch |
2 |
| Convertible |
→ S17/8 |
Trunk lid rotary tumbler microswitch |
2 |
| |
→ S88/9 |
tailgate handle switch |
2 |
| |
→ T1/1 |
Cylinder 1 ignition coil |
3 |
| |
→ T1/2 |
Cylinder 2 ignition coil |
3 |
| |
→ T1/3 |
Cylinder 3 ignition coil |
3 |
| Not convertible (connector 2) |
→ X18/19 |
Trunk lid connector |
2 |
| Convertible (connector 1) |
→ X23/7 |
Soft top connector |
4 |
| W7 |
Ground (right wheelhouse in luggage compartment) |
|
|
|
| |
→ E4 |
Right taillamp |
2 |
| |
→ M3/3 |
Fuel pump with fuel tank sensor |
4 |
| |
→ N3/10 |
ME-SFI [ME] control unit |
1.58 |
| |
→ N3/10 |
ME-SFI [ME] control unit |
1.59 |
| |
→ S12 |
Parking brake indicator switch |
2 |
| |
→ W11/7 |
Ground (tank neck) |
|
| Seat heater |
→ X28/5 |
Front passenger seat heated cushion connector |
2 |
| |
→ X55/4 |
Front passenger seat connector block |
4 |
