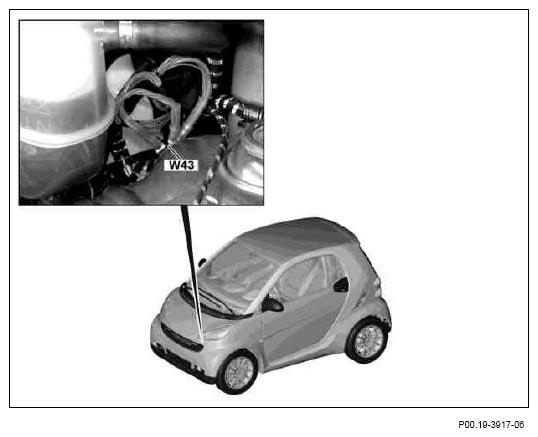

| W43 |
Ground (outside left fire wall) |
|
|
|
| |
→ E1 |
Left front headlamp unit |
1 |
| |
→ E1 |
Left front headlamp unit |
5 |
| |
→ E2 |
Right front headlamp unit |
1 |
| |
→ E2 |
Right front headlamp unit |
5 |
| Foglights |
→ E5/1 |
Left front fog lamp |
2 |
| Foglights |
→ E5/2 |
Right fog lamp |
2 |
| |
→ E6/13 |
Left side light |
2 |
| |
→ E6/14 |
Right side light |
2 |
| |
→ E22/1 |
Left additional turn signal lamp |
1 |
| |
→ E22/2 |
Right additional turn signal lamp |
1 |
| |
→ H2 |
Horn |
1 |
| |
→ M4/2 |
Coolant fan motor |
B |
| |
→ M6/1 |
Wiper motor |
1 |
| |
→ N68 |
Steering assist control unit |
1.1 |
| |
→ S11 |
Brake fluid indicator switch |
2 |
| |
→ X35/1 |
Left door separation point |
A1 |
| |
→ X35/2 |
Right door separation point |
A1 |
| Power steering |
→ Z83/11 |
Shielding connector sleeve |
|
