Location and assignment of cable connectors and connectors - center console - GF00.19-P-1000-28MCU

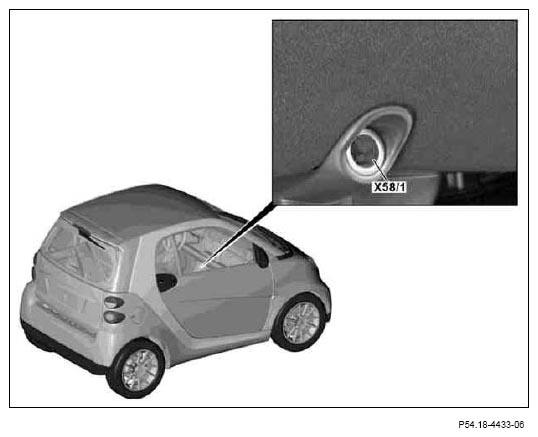

Fig 1: Identifying Interior Socket

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Code	Designation	Cable colors		Cable colors	Notes
X58/1	Interior socket
			1	BN
			2	BKBU
